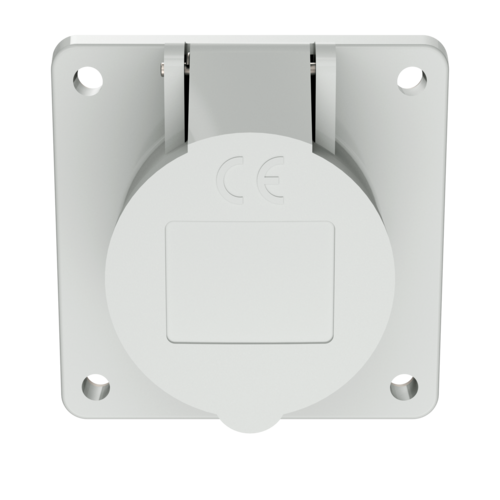

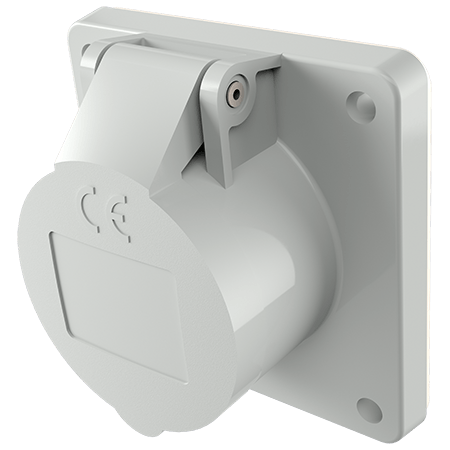

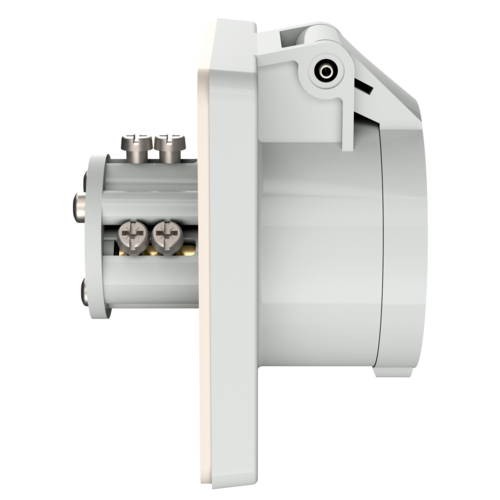

Panel mounted socket 1603

Name: Panel mounted socket
Brand: MENNEKES
SKU: 1603

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
straight

also suitable for cable ducts and flush mounted installation boxes

Part no.1603
EAN4015394012436
Std. Pack. 10

Technical specifications

Panel mounted socket 1603

Ampere	16 A
Poles	2 p
Voltage	40-50 V
Clock position	12 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP44
Flange	75x75 mm
Fixing hole	60x60 mm
Weight	126 g
Certifications	EAC

Datasheets & Downloads

Panel mounted socket 1603

Product infoPanel mounted socket 1603 PDF, 188 KB

Dimensional drawing portraitPanel mounted socket 1603 PNG, 86 KB

Dimensional drawing landscape formatPanel mounted socket 1603 PNG, 86 KB

Directives

Panel mounted socket 1603

REACh

RoHS

Appropriate accessories

Panel mounted socket 1603

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369
