MENNEKES

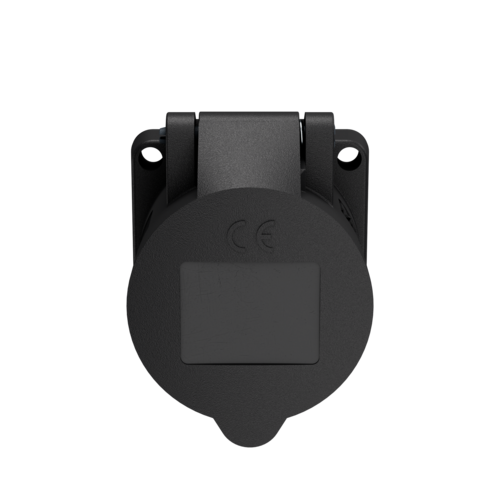

MENNEKES Panel mounted socket 1629ZC
MENNEKES Panel mounted socket 1629ZC images3d

Panel mounted socket 1629ZC

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.1629ZC
  • EAN4015394206422
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 1629ZC

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 55x55 mm
Fixing hole 45x45 mm
Weight 119 g
Certifications EAC

Directives

Panel mounted socket 1629ZC
