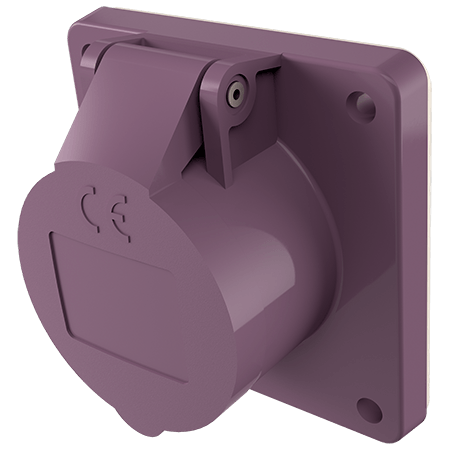

Panel mounted socket 1657

Name: Panel mounted socket
Brand: MENNEKES
SKU: 1657

Ampere 16 A 32 A

Poles

Voltage

screw terminals
straight

also suitable for cable ducts and flush mounted installation boxes

Part no.1657
EAN4015394012504
Std. Pack. 10

Technical specifications

Panel mounted socket 1657

Ampere	16 A
Poles	3 p
Voltage	20-25 V
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP44
Flange	75x75 mm
Fixing hole	60x60 mm
Weight	147 g
Certifications	EAC

Datasheets & Downloads

Panel mounted socket 1657

Product infoPanel mounted socket 1657 PDF, 174 KB

Dimensional drawing portraitPanel mounted socket 1657 PNG, 86 KB

Dimensional drawing landscape formatPanel mounted socket 1657 PNG, 86 KB

Directives

Panel mounted socket 1657

REACh

RoHS

Appropriate accessories

Panel mounted socket 1657

Flange

Part no. 40102

for panel mounted sockets: product group 1056 (screw terminals): all 16 A, 3 p to 5 p as well as 32 A, 5 p in special form (comp. type 1276) product group 1134 (screwless, TwinCONTACT): all 16 A, 3 p to 5 p

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369
