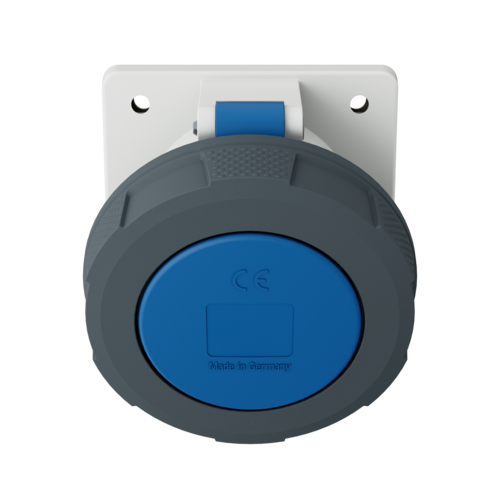

MENNEKES Panel mounted socket 204A
MENNEKES Panel mounted socket 204A images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted socket 204A

Ampere 63 A 125 A
Poles
Voltage
Clock position
  • 20° inclination
  • sockets with pilot contact: part no. + index P
  • Part no.204A
  • EAN4015394000822
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Panel mounted socket 204A

Ampere 63 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Flange 110x106 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 607 g
Certifications VDE

Datasheets & Downloads

Panel mounted socket 204A

Product infoPanel mounted socket 204A PDF, 183 KB
Manufacturer‘s declarationPanel mounted socket 204A PDF, 54 KB
Dimensional drawing portraitPanel mounted socket 204A PNG, 108 KB
Dimensional drawing landscape formatPanel mounted socket 204A PNG, 109 KB

Videos

Panel mounted socket 204A

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Panel mounted socket 204A

REACh
RoHS
