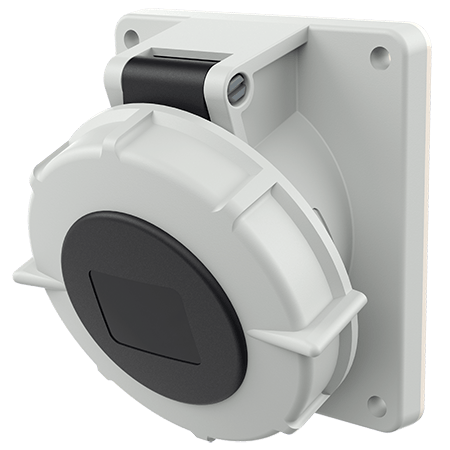

Panel mounted socket 2296
Ampere | 16 A |
---|---|
Poles | 7 p |
Voltage | 500 V |
Clock position | 7 h |
Hertz | 50-60 Hz |
Connection technology | Screw terminals |
Contact |
highly heat resistant contact carrier nickel plated contacts |
Protection type | IP67 |
Flange | 100x92 mm |
Fixing hole | 85x77 mm |
Inclination | 20 ° |
Weight | 256 g |
Certifications | EAC |
