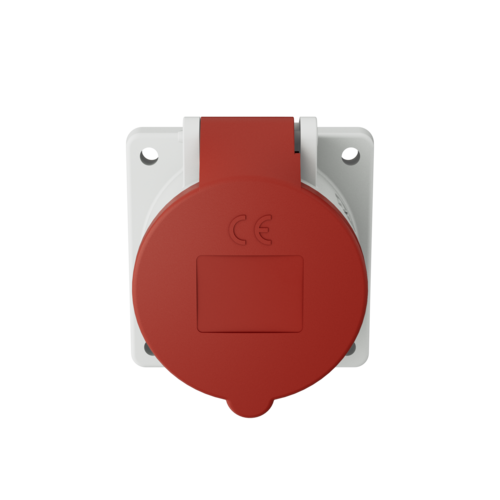

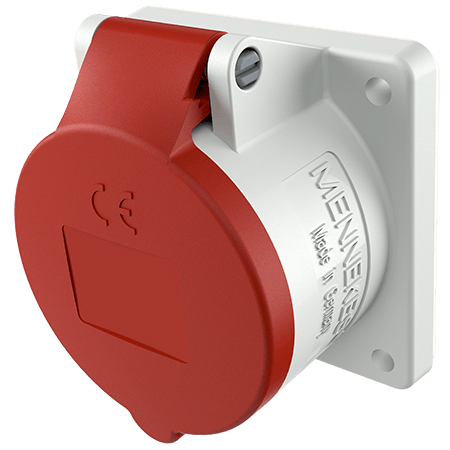

Panel mounted socket 2443
Voltage
Clock position
- screw terminals
- highly heat resistant contact carrier
- nickel plated contacts
- straight
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Panel mounted socket 2443
| Ampere | 16 A |
|---|---|
| Poles | 7 p |
| Voltage | 400 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
highly heat resistant contact carrier nickel plated contacts |
| Protection type | IP44 |
| Flange | 75x75 mm |
| Fixing hole | 60x60 mm |
| Weight | 198 g |
| Certifications | EAC |
