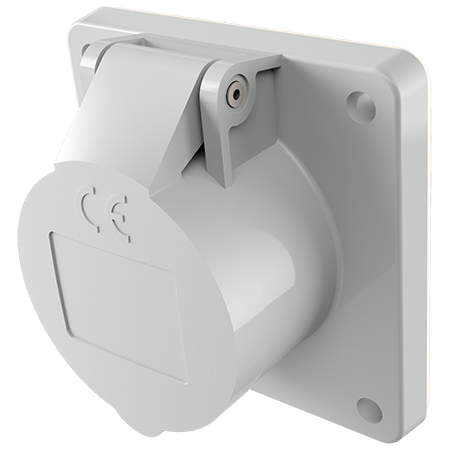

Panel mounted socket 2488A

Name: Panel mounted socket
Brand: MENNEKES
SKU: 2488A

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
straight

also suitable for cable ducts and flush mounted installation boxes

Part no.2488A
EAN4015394015253
Std. Pack. 10

Technical specifications

Panel mounted socket 2488A

Ampere	32 A
Poles	2 p
Voltage	50 V
Clock position	10 h
Hertz	(DC)
Connection technology	Screw terminals
Contact	standard
Protection type	IP44
Flange	75x75 mm
Fixing hole	60x60 mm
Weight	116 g
Certifications	EAC

Datasheets & Downloads

Panel mounted socket 2488A

Product infoPanel mounted socket 2488A PDF, 188 KB

Dimensional drawing portraitPanel mounted socket 2488A PNG, 86 KB

Dimensional drawing landscape formatPanel mounted socket 2488A PNG, 86 KB

Directives

Panel mounted socket 2488A

REACh

RoHS

Appropriate accessories

Panel mounted socket 2488A

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369
