Show all 7 pole / Show all Panel mounted socket

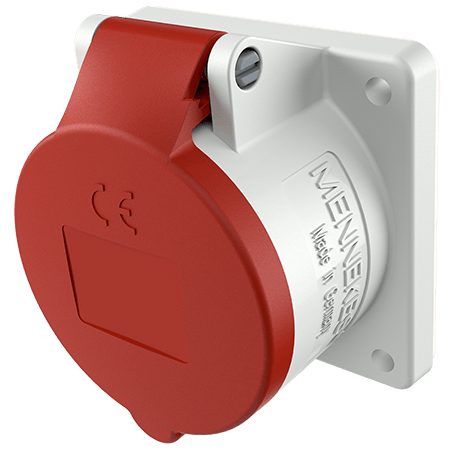

Panel mounted socket 2584

Name: Panel mounted socket
Brand: MENNEKES
SKU: 2584

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals
highly heat resistant contact carrier

nickel plated contacts
straight

Part no.2584
EAN4015394015710
Std. Pack. 10

Technical specifications

Panel mounted socket 2584

Ampere	32 A
Poles	7 p
Voltage	400 V
Clock position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	highly heat resistant contact carrier nickel plated contacts
Protection type	IP44
Flange	75x75 mm
Fixing hole	60x60 mm
Weight	313 g
Certifications	EAC

Datasheets & Downloads

Panel mounted socket 2584

Product infoPanel mounted socket 2584 PDF, 335 KB

CAD data STPPanel mounted socket 2584 ZIP, 952 KB

CAD data 3D DWGPanel mounted socket 2584 ZIP, 2 MB

Dimensional drawing portraitPanel mounted socket 2584 PNG, 244 KB

Dimensional drawing landscape formatPanel mounted socket 2584 PNG, 259 KB

Directives

Panel mounted socket 2584

REACh

RoHS

Appropriate accessories

Panel mounted socket 2584

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369
