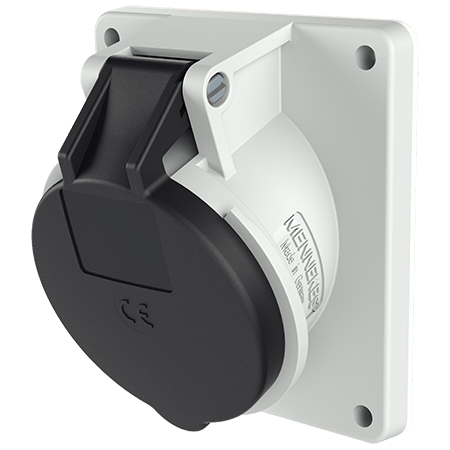

MENNEKES Panel mounted socket 2764A

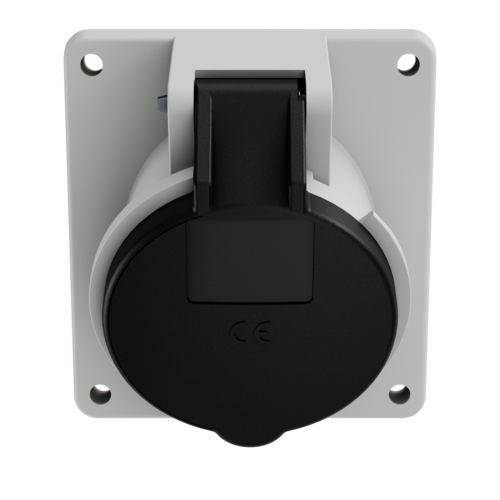

MENNEKES Panel mounted socket 2764A images3d

Panel mounted socket 2764A

Poles
Voltage
Clock position
  • screw terminals
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.2764A
  • EAN4015394016434
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 2764A

Ampere 32 A
Poles 5 p
Voltage 600-690 V
Clock position 5 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 270 g
Certifications EAC
