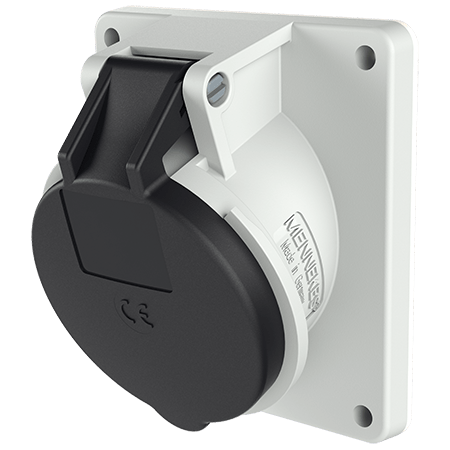

MENNEKES Panel mounted socket 2765A
MENNEKES Panel mounted socket 2765A images3d

Panel mounted socket 2765A

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • Part no.2765A
  • EAN4015394097372
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 2765A

Ampere 16 A
Poles 5 p
Voltage 600-690 V
Clock position 5 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 201 g
Certifications EAC

Datasheets & Downloads

Panel mounted socket 2765A

Product infoPanel mounted socket 2765A PDF, 167 KB
Dimensional drawing portraitPanel mounted socket 2765A PNG, 49 KB
Dimensional drawing landscape formatPanel mounted socket 2765A PNG, 49 KB

Directives

Panel mounted socket 2765A

REACh
RoHS
