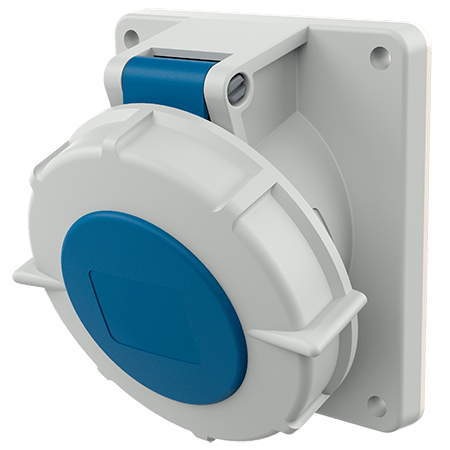

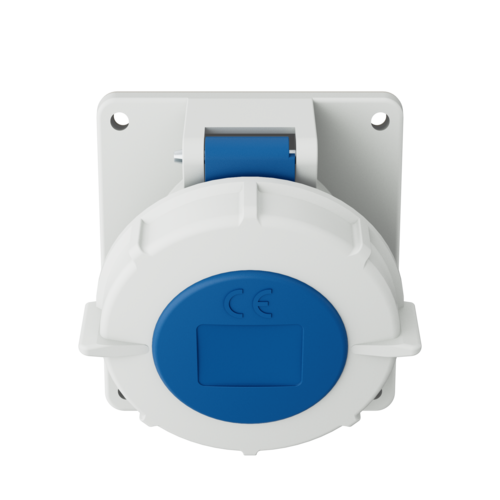

MENNEKES Panel mounted socket 2883
MENNEKES Panel mounted socket 2883 images3d

Panel mounted socket 2883

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • 20° inclination
  • Part no.2883
  • EAN4015394016861
  • Std. Pack. 10

Technical specifications

Panel mounted socket 2883

Ampere 16 A
Poles 7 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Flange 100x92 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 256 g
Certifications EAC

Directives

Panel mounted socket 2883
