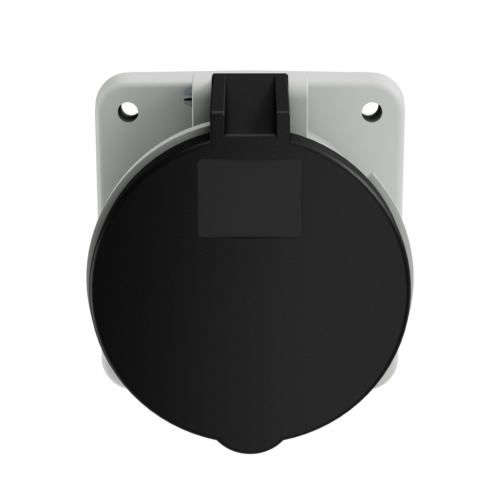

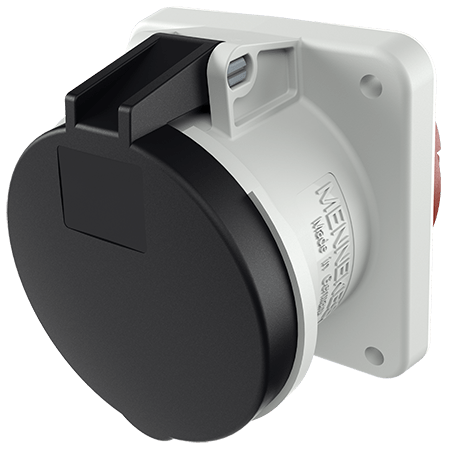

Panel mounted socket 3115P
Ampere
63 A
Poles
Voltage
Clock position
- screw terminals
- with pilot contact
- X-CONTACT®
- highly heat resistant contact carrier
- straight
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Panel mounted socket 3115P
| Ampere | 63 A |
|---|---|
| Poles | 5 p |
| Voltage | 600-690 V |
| Clock position | 5 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
highly heat resistant contact carrier X-CONTACT |
| Protection type | IP44 |
| Flange | 107x100 mm |
| Fixing hole | 85x77 mm |
| Weight | 686 g |
| Certifications | EAC |
Videos
Panel mounted socket 3115P
