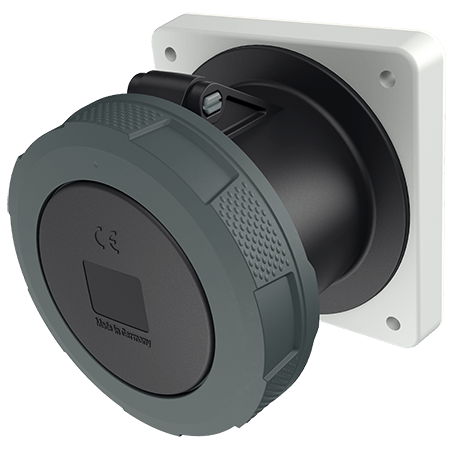

MENNEKES Panel mounted socket 3283
MENNEKES Panel mounted socket 3283 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted socket 3283

Ampere 63 A 125 A
Poles
Voltage
Clock position
  • straight
  • products with pilot contact on request
  • Part no.3283
  • EAN4015394018513
  • Std. Pack. 5

Technical specifications

Panel mounted socket 3283

Ampere 125 A
Poles 5 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Flange 130x130 mm
Fixing hole 104x104 mm
Weight 1256 g
Certifications VDE
EAC

Datasheets & Downloads

Panel mounted socket 3283

Product infoPanel mounted socket 3283 PDF, 261 KB
Manufacturer‘s declarationPanel mounted socket 3283 PDF, 37 KB
Dimensional drawing portraitPanel mounted socket 3283 PNG, 193 KB
Dimensional drawing landscape formatPanel mounted socket 3283 PNG, 198 KB

Videos

Panel mounted socket 3283

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Panel mounted socket 3283

REACh
RoHS
