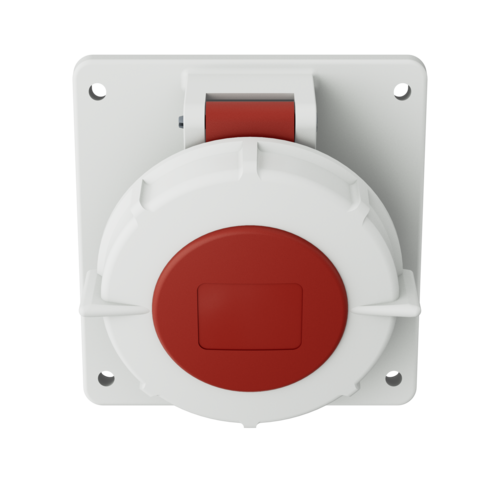

MENNEKES Panel mounted socket 3333
MENNEKES Panel mounted socket 3333 images3d

Panel mounted socket 3333

Ampere 16 A 32 A 63 A
Poles
Voltage
Clock position
  • screw terminals
  • uniform fixing hole spacing
  • Part no.3333
  • EAN4015394188063
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 3333

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 110x106 mm
Fixing hole 90x90 mm
Inclination 15 °
Weight 420 g
Certifications VDE

Datasheets & Downloads

Panel mounted socket 3333

Product infoPanel mounted socket 3333 PDF, 192 KB
CAD data STPPanel mounted socket 3333 ZIP, 761 KB
CAD data 3D DWGPanel mounted socket 3333 ZIP, 2 MB
Dimensional drawing portraitPanel mounted socket 3333 PNG, 104 KB
Dimensional drawing landscape formatPanel mounted socket 3333 PNG, 105 KB

Directives

Panel mounted socket 3333

REACh
RoHS
