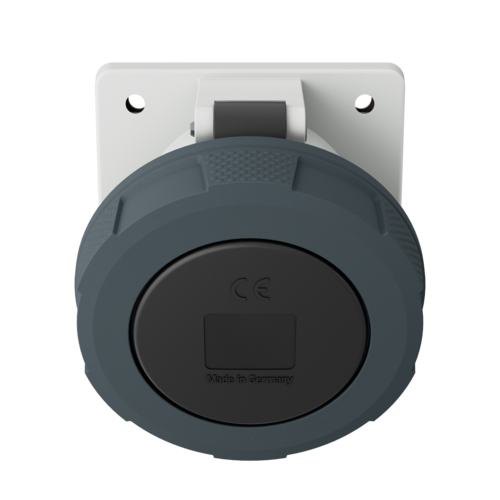

MENNEKES Panel mounted socket 3507
MENNEKES Panel mounted socket 3507 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted socket 3507

Ampere 63 A 125 A
Poles
Voltage
Clock position
  • 20° inclination
  • products with pilot contact on request
  • Part no.3507
  • EAN4015394019466
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Panel mounted socket 3507

Ampere 63 A
Poles 5 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Flange 110x106 mm
Fixing hole 85x77 mm
Inclination 20 °
Weight 668 g
Certifications VDE

Datasheets & Downloads

Panel mounted socket 3507

Product infoPanel mounted socket 3507 PDF, 189 KB
Dimensional drawing portraitPanel mounted socket 3507 PNG, 157 KB
Dimensional drawing landscape formatPanel mounted socket 3507 PNG, 295 KB

Videos

Panel mounted socket 3507

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Panel mounted socket 3507

REACh
RoHS
