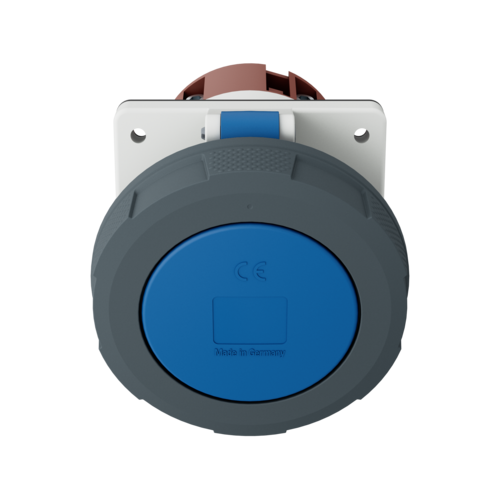

MENNEKES Panel mounted socket 3575
MENNEKES Panel mounted socket 3575 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted socket 3575

Ampere 63 A 125 A
Poles
Voltage
Clock position
  • 15° inclination
  • products with pilot contact on request
  • Part no.3575
  • EAN4015394019824
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Read more

Technical specifications

Panel mounted socket 3575

Ampere 125 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Flange 114x110 mm
Fixing hole 90x90 mm
Inclination 15 °
Weight 940 g
Certifications VDE

Datasheets & Downloads

Panel mounted socket 3575

Product infoPanel mounted socket 3575 PDF, 183 KB
CAD data STPPanel mounted socket 3575 ZIP, 1 MB
CAD data 3D DWGPanel mounted socket 3575 ZIP, 2 MB
Dimensional drawing portraitPanel mounted socket 3575 PNG, 108 KB
Dimensional drawing landscape formatPanel mounted socket 3575 PNG, 109 KB

Videos

Panel mounted socket 3575

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Panel mounted socket 3575

REACh
RoHS
