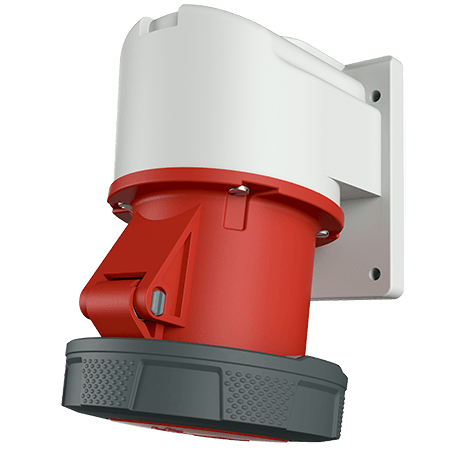

MENNEKES Panel mounted socket 3641

Please accept marketing-cookies to watch this video.

Video varieties

Panel mounted socket 3641

Ampere 63 A
Poles
Voltage
Clock position
  • angled 80°
  • partially assembled
  • Part no.3641
  • EAN4015394230229
  • Std. Pack. 5

Technical specifications

Panel mounted socket 3641

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67
Flange 110x106 mm
Fixing hole 80x90 mm
Inclination 80 °
Weight 796 g

Datasheets & Downloads

Panel mounted socket 3641

Product infoPanel mounted socket 3641 PDF, 123 KB
Manufacturer‘s declarationPanel mounted socket 3641 PDF, 37 KB
CAD data STPPanel mounted socket 3641 ZIP, 989 KB
CAD data 3D DWGPanel mounted socket 3641 ZIP, 2 MB
Dimensional drawing portraitPanel mounted socket 3641 PNG, 43 KB
Dimensional drawing landscape formatPanel mounted socket 3641 PNG, 42 KB

Videos

Panel mounted socket 3641

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Panel mounted socket 3641

REACh
RoHS
