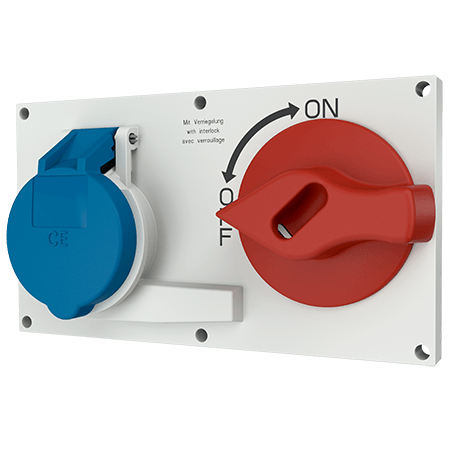

MENNEKES Panel mounted socket 7504

Panel mounted socket 7504

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • for horizontal installation
  • switched
  • mechanical DUO-interlock
  • sockets can be padlocked
  • Part no.7504
  • EAN4015394227847
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 7504

Ampere 16 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Enclosure material Plastic
Weight 538 g
Certifications CQC

Datasheets & Downloads

Panel mounted socket 7504

Product infoPanel mounted socket 7504 PDF, 128 KB
Dimensional drawing portraitPanel mounted socket 7504 PNG, 54 KB
Dimensional drawing landscape formatPanel mounted socket 7504 PNG, 54 KB

Directives

Panel mounted socket 7504

REACh
RoHS
