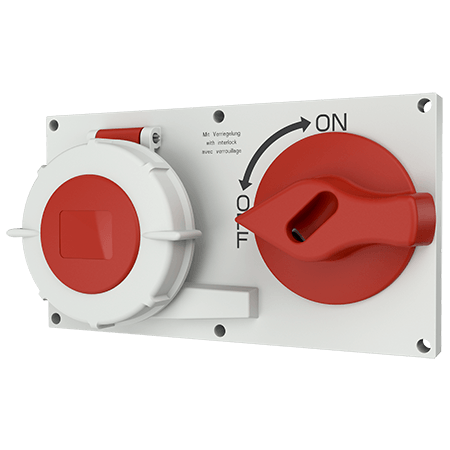

MENNEKES Panel mounted socket 7524

Panel mounted socket 7524

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • for horizontal installation
  • switched
  • mechanical DUO-interlock
  • sockets can be padlocked
  • Part no.7524
  • EAN4015394228080
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 7524

Ampere 16 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic
Weight 564 g
Certifications CQC

Datasheets & Downloads

Panel mounted socket 7524

Product infoPanel mounted socket 7524 PDF, 128 KB
Manufacturer‘s declarationPanel mounted socket 7524 PDF, 55 KB
CAD data STPPanel mounted socket 7524 ZIP, 1 MB
CAD data 3D DWGPanel mounted socket 7524 ZIP, 3 MB
Dimensional drawing portraitPanel mounted socket 7524 PNG, 53 KB
Dimensional drawing landscape formatPanel mounted socket 7524 PNG, 53 KB

Directives

Panel mounted socket 7524

REACh
RoHS
