Show all Panel mounted sockets switched and interlocked / Show all Panel mounted socket

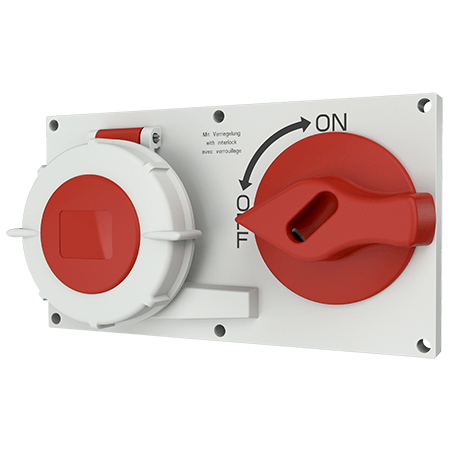

MENNEKES Panel mounted socket 7526

Panel mounted socket 7526

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • for horizontal installation
  • switched
  • mechanical DUO-interlock
  • sockets can be padlocked
  • Part no.7526
  • EAN4015394228103
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 7526

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic
Weight 600 g
Certifications CQC

Datasheets & Downloads

Panel mounted socket 7526

Product infoPanel mounted socket 7526 PDF, 128 KB
Manufacturer‘s declarationPanel mounted socket 7526 PDF, 37 KB
CAD data STPPanel mounted socket 7526 ZIP, 2 MB
CAD data 3D DWGPanel mounted socket 7526 ZIP, 8 MB
Dimensional drawing portraitPanel mounted socket 7526 PNG, 53 KB
Dimensional drawing landscape formatPanel mounted socket 7526 PNG, 53 KB

Directives

Panel mounted socket 7526

REACh
RoHS
