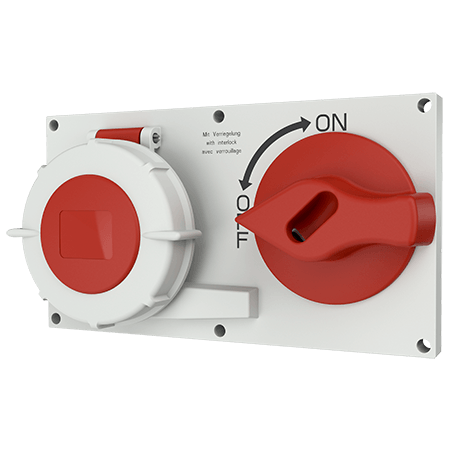

MENNEKES Panel mounted socket 7536

Panel mounted socket 7536

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • for horizontal installation
  • switched
  • mechanical DUO-interlock
  • sockets can be padlocked
  • Part no.7536
  • EAN4015394228202
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 7536

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic
Weight 600 g
Certifications CQC

Datasheets & Downloads

Panel mounted socket 7536

Product infoPanel mounted socket 7536 PDF, 129 KB
Manufacturer‘s declarationPanel mounted socket 7536 PDF, 38 KB
CAD data STPPanel mounted socket 7536 ZIP, 5 MB
CAD data 3D DWGPanel mounted socket 7536 ZIP, 13 KB
Dimensional drawing portraitPanel mounted socket 7536 PNG, 53 KB
Dimensional drawing landscape formatPanel mounted socket 7536 PNG, 53 KB

Directives

Panel mounted socket 7536

REACh
RoHS
