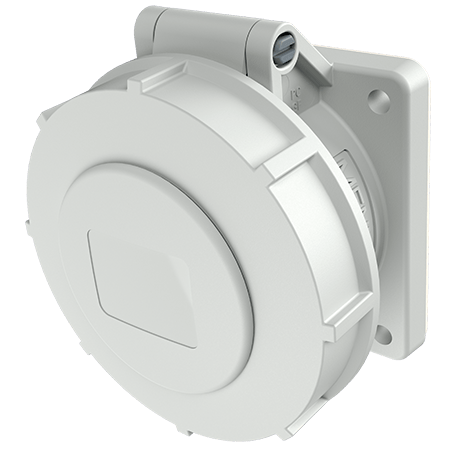

Panel mounted socket 808A

Name: Panel mounted socket
Brand: MENNEKES
SKU: 808A

Ampere 16 A 32 A

Poles

Voltage

Clock position

screw terminals

straight

Part no.808A
EAN4015394006022
Std. Pack. 10

Technical specifications

Panel mounted socket 808A

Ampere	32 A
Poles	3 p
Voltage	Isolating transformer
Clock position	12 h
Connection technology	Screw terminals
Contact	standard
Protection type	IP67
Flange	85x75 mm
Fixing hole	60x60 mm
Weight	236 g
Certifications	EAC

Datasheets & Downloads

Panel mounted socket 808A

Product infoPanel mounted socket 808A PDF, 164 KB

Dimensional drawing portraitPanel mounted socket 808A PNG, 48 KB

Dimensional drawing landscape formatPanel mounted socket 808A PNG, 48 KB

Directives

Panel mounted socket 808A

REACh

RoHS

Appropriate accessories

Panel mounted socket 808A

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136
