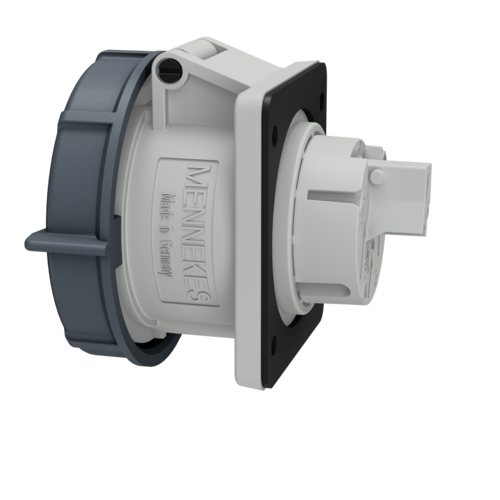

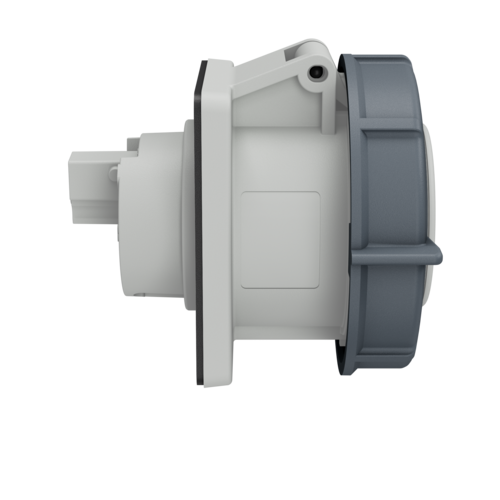

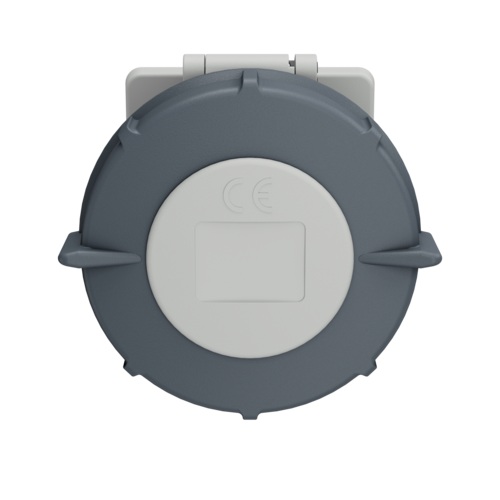

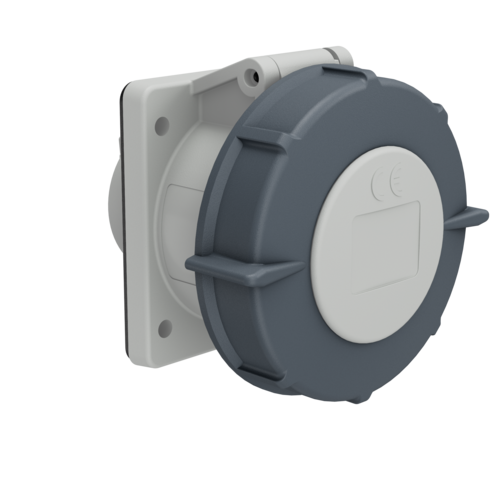

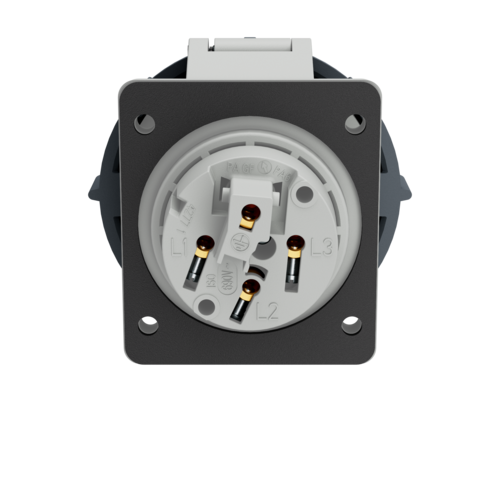

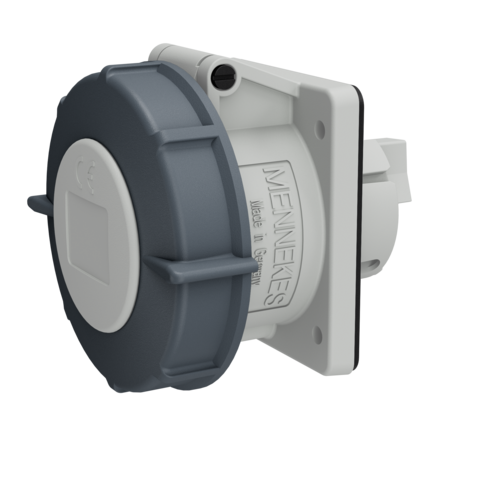

MENNEKES Panel mounted socket 809A
MENNEKES Panel mounted socket 809A images3d

Panel mounted socket 809A

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • straight
  • Part no.809A
  • EAN4015394006039
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket 809A

Ampere 32 A
Poles 4 p
Voltage Isolating transformer
Clock position 12 h
Connection technology Screw terminals
Contact standard
Protection type IP67
Flange 85x75 mm
Fixing hole 60x60 mm
Weight 282 g
Certifications EAC
CQC

Datasheets & Downloads

Panel mounted socket 809A

Product infoPanel mounted socket 809A PDF, 165 KB
CAD data STPPanel mounted socket 809A ZIP, 776 KB
CAD data 3D DWGPanel mounted socket 809A ZIP, 2 MB
Dimensional drawing portraitPanel mounted socket 809A PNG, 48 KB
Dimensional drawing landscape formatPanel mounted socket 809A PNG, 48 KB
