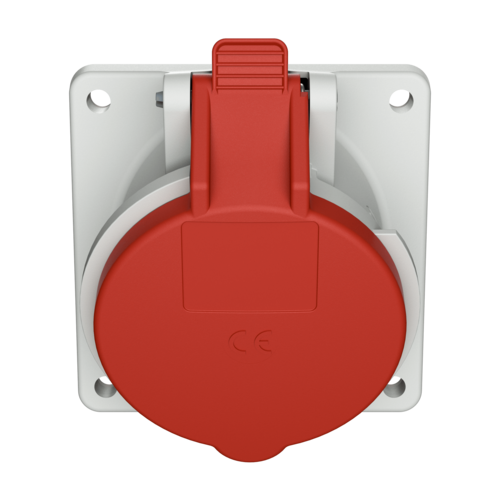

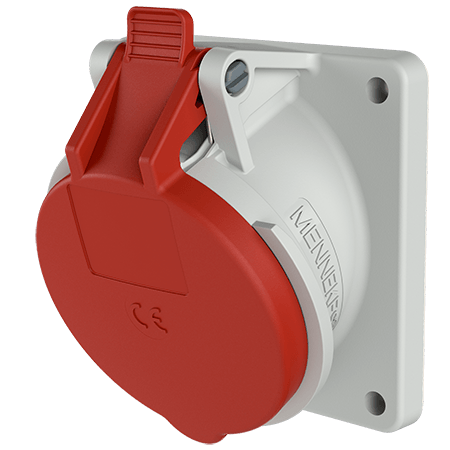

MENNEKES Panel mounted socket CEEplus 960
MENNEKES Panel mounted socket CEEplus 960 images3d

Panel mounted socket CEEplus 960

Ampere 16 A
Poles
Voltage
Clock position
  • screw terminals
  • with 4 additional contacts
  • 20° inclination
  • Part no.960
  • EAN4015394212355
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket CEEplus 960

Ampere 16 A
Poles 5 p+a
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP44
Flange 85x85 mm
Fixing hole 70x70 mm
Inclination 20 °
Weight 200 g
Certifications EAC

Directives

Panel mounted socket CEEplus 960
