MENNEKES Panel mounted socket SCHUKO® 11032
MENNEKES Panel mounted socket SCHUKO® 11032 images3d

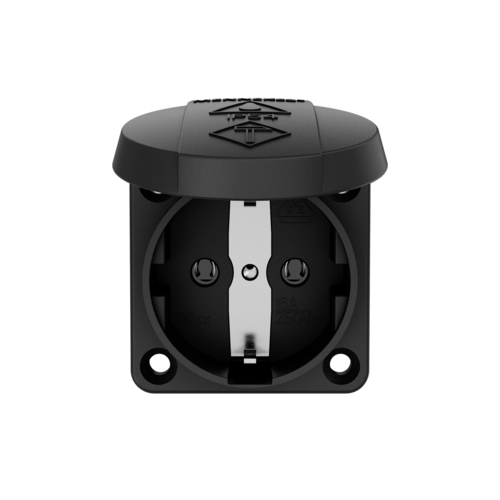

Panel mounted socket SCHUKO® 11032

Ampere 16 A
Poles
Voltage
  • for stationary use
  • with hinged lid
  • 3 screw terminals as connecting terminals for 1.5 – 2.5 mm²
  • Part no.11032
  • EAN4015394184638
  • Std. Pack. 100
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket SCHUKO® 11032

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP54
Shutter No

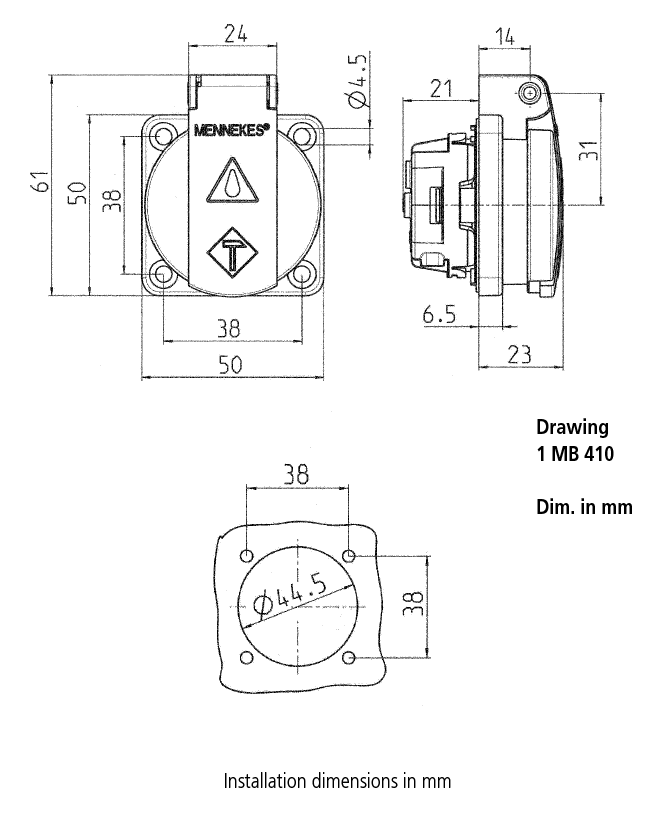

Flange 50x50 mm
Fixing hole 38x38 mm
Weight 47 g
Certifications VDE

Directives

Panel mounted socket SCHUKO® 11032

Appropriate accessories

Panel mounted socket SCHUKO® 11032

MENNEKES Base for wall mounted socket 10714

Base for wall mounted socket

Part no. 10714

with cable entry and screws, suitable for all panel mounted sockets SCHUKO®/ grounding type sockets, flange: 50 x 50 mm

MENNEKES Base for wall mounted socket 10715

Base for wall mounted socket

Part no. 10715

with cable entry and screws, suitable for all panel mounted sockets SCHUKO®/ grounding type sockets, flange: 50 x 50 mm

MENNEKES Fixing frame 19266106

Fixing frame

Part no. 19266106

for swift and safe fastening of panel mounted sockets

MENNEKES Base for wall mounted socket 10716

Base for wall mounted socket

Part no. 10716

with cable entry and screws, suitable for all panel mounted sockets SCHUKO®/ grounding type sockets, flange: 50 x 50 mm

MENNEKES Blanking flange 41418

Blanking flange

Part no. 41418

to close unused apertures, grey
