MENNEKES Panel mounted socket SCHUKO® 11331F
MENNEKES Panel mounted socket SCHUKO® 11331F images3d

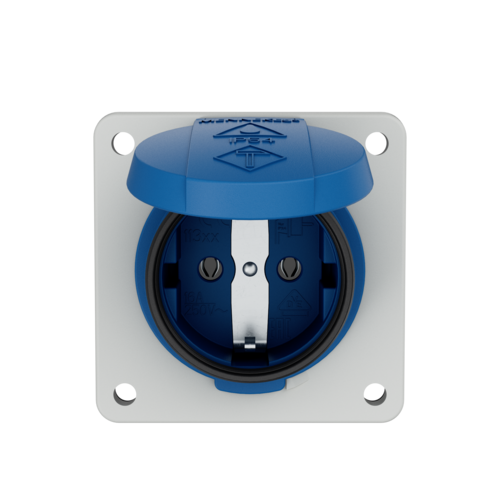

Panel mounted socket SCHUKO® 11331F

Ampere 16 A
Poles
Voltage
  • for portable use
  • with front gasket
  • with hinged lid
  • for easy installation in a cable duct or an enclosure
  • 3 screw terminals as connecting terminals 1.5 – 2.5 mm²
  • Part no.11331F
  • EAN4015394259305
  • Std. Pack. 20
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket SCHUKO® 11331F

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP54
Shutter No

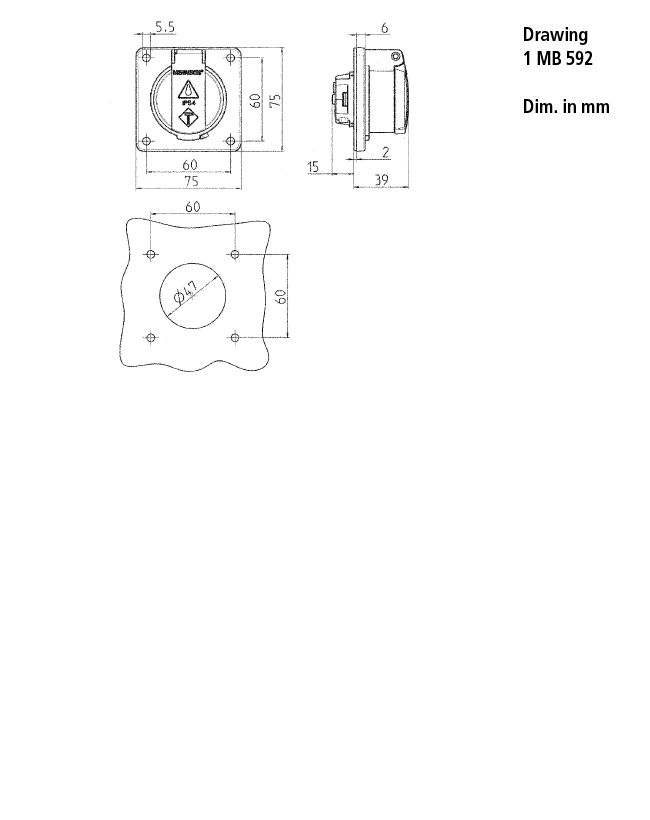

Flange 75x75 mm
Fixing hole 60x60 mm
Weight 80 g
Certifications EAC

Directives

Panel mounted socket SCHUKO® 11331F

Appropriate accessories

Panel mounted socket SCHUKO® 11331F

MENNEKES Blanking flange 41419

Blanking flange

Part no. 41419

to close unused apertures, grey

MENNEKES Fixing frame 19267000

Fixing frame

Part no. 19267000

for swift and safe fastening of panel mounted sockets
