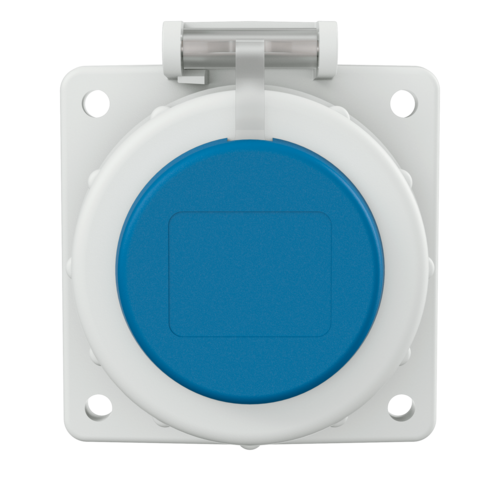

MENNEKES Panel mounted socket SCHUKO® 17022
MENNEKES Panel mounted socket SCHUKO® 17022 images3d

Panel mounted socket SCHUKO® 17022

Ampere 16 A
Poles
Voltage
  • screw terminals
  • bayonet lock lid attached by a strap
  • rectangular flange
  • four fixing holes
  • Part no.17022
  • EAN4015394288077
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted socket SCHUKO® 17022

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP68
Shutter No
Flange 75x75 mm
Fixing hole 60x60 mm
Weight 107 g
Certifications VDE

Datasheets & Downloads

Panel mounted socket SCHUKO® 17022

Product infoPanel mounted socket SCHUKO® 17022 PDF, 164 KB
CAD data STPPanel mounted socket SCHUKO® 17022 ZIP, 859 KB
CAD data 3D DWGPanel mounted socket SCHUKO® 17022 ZIP, 2 MB

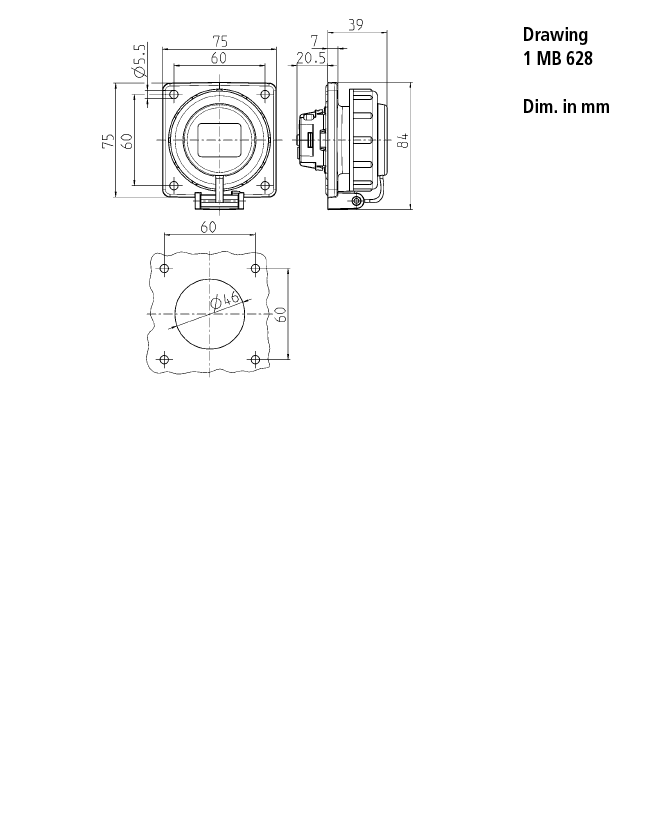

Dimensional drawing portraitPanel mounted socket SCHUKO® 17022 PNG, 23 KB
Dimensional drawing landscape formatPanel mounted socket SCHUKO® 17022 PNG, 40 KB

Directives

Panel mounted socket SCHUKO® 17022

REACh
RoHS
