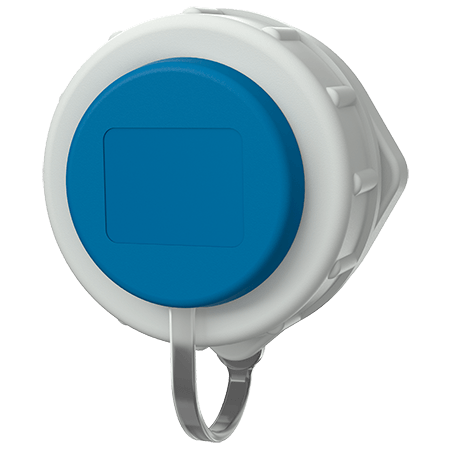

MENNEKES Panel mounted socket SCHUKO® 17038

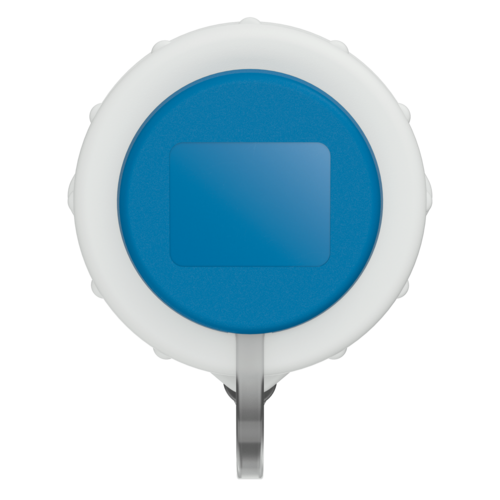

MENNEKES Panel mounted socket SCHUKO® 17038 images3d

Panel mounted socket SCHUKO® 17038

Ampere 16 A
Poles
Voltage
  • screw terminals
  • bayonet lock lid attached by a strap
  • oval flange
  • two fixing holes
  • Part no.17038
  • EAN4015394288060
  • Std. Pack. 10

Technical specifications

Panel mounted socket SCHUKO® 17038

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP68
Shutter No
Weight 93 g
Certifications VDE

Datasheets & Downloads

Panel mounted socket SCHUKO® 17038

Product infoPanel mounted socket SCHUKO® 17038 PDF, 127 KB
CAD data STPPanel mounted socket SCHUKO® 17038 ZIP, 704 KB
CAD data 3D DWGPanel mounted socket SCHUKO® 17038 ZIP, 1 MB
Dimensional drawing portraitPanel mounted socket SCHUKO® 17038 PNG, 37 KB
Dimensional drawing landscape formatPanel mounted socket SCHUKO® 17038 PNG, 37 KB

Directives

Panel mounted socket SCHUKO® 17038

REACh
RoHS
