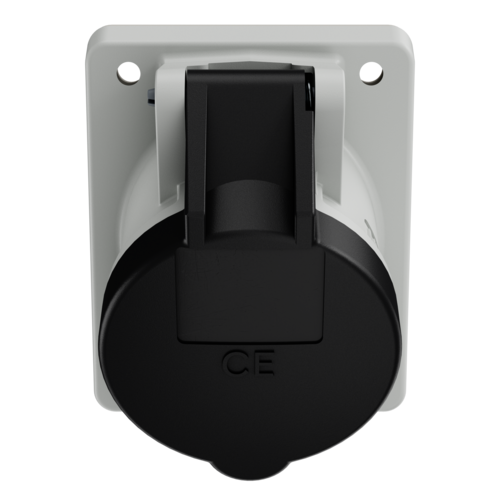

Panel mounted socket with TwinCONTACT 155
Ampere
16 A
Poles
Voltage
Clock position
- screwless spring terminals
- suitable for through wiring
- 20° inclination
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Panel mounted socket with TwinCONTACT 155
| Ampere | 16 A |
|---|---|
| Poles | 4 p |
| Voltage | 500 V |
| Clock position | 7 h |
| Hertz | 50-60 Hz |
| Connection technology | Screwless - TwinCONTACT |
| Contact | standard |
| Protection type | IP44 |
| Flange | 87x71 mm |
| Fixing hole | 70x52 mm |
| Inclination | 20 ° |
| Weight | 134 g |
| Certifications | EAC |
