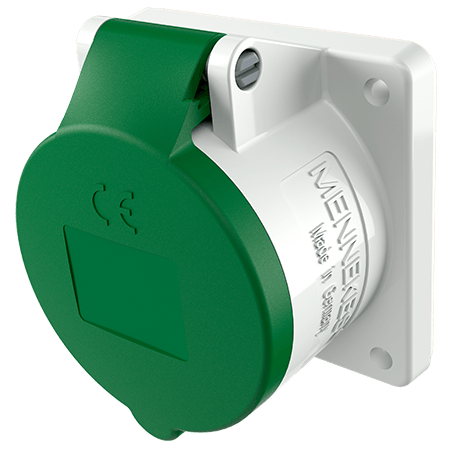

Panel mounted socket with TwinCONTACT 1671

Name: Panel mounted socket with TwinCONTACT
Brand: MENNEKES
SKU: 1671

Ampere 16 A 32 A

Poles

Voltage

Clock position

screwless spring terminals
suitable for through wiring

straight
blanking flange to close unused apertures part no. 41419

Part no.1671
EAN4015394214496
Std. Pack. 10

Screwless - TwinCONTACT

Screwless spring terminals

Technical specifications

Panel mounted socket with TwinCONTACT 1671

Ampere	16 A
Poles	3 p
Voltage	50-500 V
Clock position	2 h
Hertz	300-500 Hz
Connection technology	Screwless - TwinCONTACT
Contact	standard
Protection type	IP44
Flange	75x75 mm
Fixing hole	60x60 mm
Weight	103 g
Certifications	VDE

Datasheets & Downloads

Panel mounted socket with TwinCONTACT 1671

Product infoPanel mounted socket with TwinCONTACT 1671 PDF, 174 KB

Manufacturer‘s declarationPanel mounted socket with TwinCONTACT 1671 PDF, 37 KB

Dimensional drawing portraitPanel mounted socket with TwinCONTACT 1671 PNG, 34 KB

Dimensional drawing landscape formatPanel mounted socket with TwinCONTACT 1671 PNG, 35 KB

Directives

Panel mounted socket with TwinCONTACT 1671

REACh

RoHS

Appropriate accessories

Panel mounted socket with TwinCONTACT 1671

Flange

Part no. 40102

for panel mounted sockets: product group 1056 (screw terminals): all 16 A, 3 p to 5 p as well as 32 A, 5 p in special form (comp. type 1276) product group 1134 (screwless, TwinCONTACT): all 16 A, 3 p to 5 p

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

Blanking flange

Part no. 41419

to close unused apertures, grey
