Show all Panel mounted sockets / Show all Panel mounted socket with TwinCONTACT

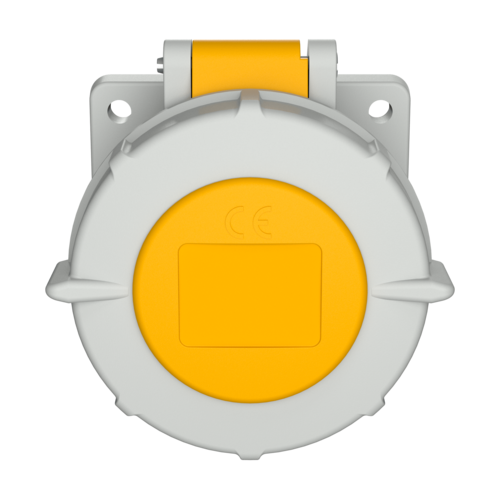

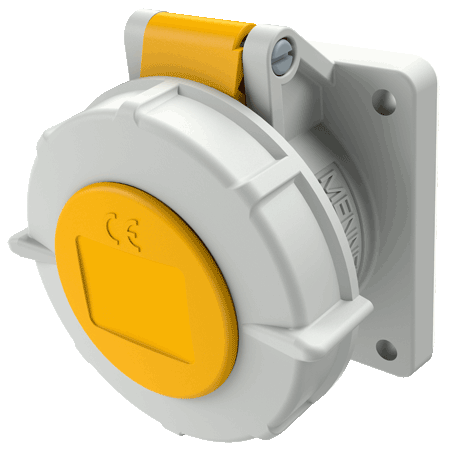

Panel mounted socket with TwinCONTACT 1710

Ampere 16 A 32 A

Poles

Voltage

Clock position

screwless spring terminals
suitable for through wiring

straight
blanking flange to close unused apertures part no. 41419

Part no.1710
EAN4015394214663
Std. Pack. 10

Screwless - TwinCONTACT

Screwless spring terminals

Technical specifications

Panel mounted socket with TwinCONTACT 1710

Ampere	16 A
Poles	4 p
Voltage	110 V
Clock position	4 h
Hertz	50-60 Hz
Connection technology	Screwless - TwinCONTACT
Contact	standard
Protection type	IP67
Flange	75x75 mm
Fixing hole	60x60 mm
Weight	158 g
Certifications	EAC

Datasheets & Downloads

Panel mounted socket with TwinCONTACT 1710

Product infoPanel mounted socket with TwinCONTACT 1710 PDF, 147 KB

Dimensional drawing portraitPanel mounted socket with TwinCONTACT 1710 PNG, 93 KB

Dimensional drawing landscape formatPanel mounted socket with TwinCONTACT 1710 PNG, 94 KB

Directives

Panel mounted socket with TwinCONTACT 1710

REACh

RoHS

Appropriate accessories

Panel mounted socket with TwinCONTACT 1710

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

Flange

Part no. 40102

for panel mounted sockets: product group 1056 (screw terminals): all 16 A, 3 p to 5 p as well as 32 A, 5 p in special form (comp. type 1276) product group 1134 (screwless, TwinCONTACT): all 16 A, 3 p to 5 p

Blanking flange

Part no. 41419

to close unused apertures, grey
