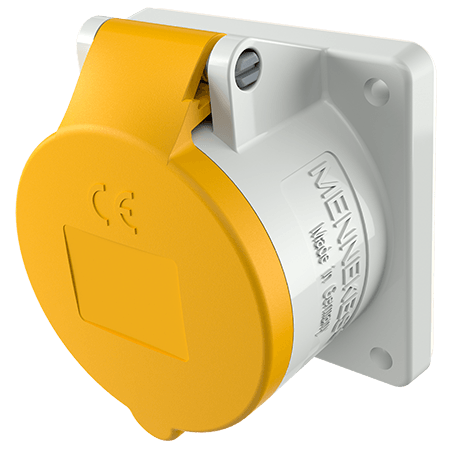

Panel mounted socket with TwinCONTACT 1786

Name: Panel mounted socket with TwinCONTACT
Brand: MENNEKES
SKU: 1786

Ampere 16 A 32 A

Poles

Voltage

Clock position

screwless spring terminals
suitable for through wiring

straight

Part no.1786
EAN4015394214922
Std. Pack. 10

Screwless - TwinCONTACT

Screwless spring terminals

Technical specifications

Panel mounted socket with TwinCONTACT 1786

Ampere	32 A
Poles	3 p
Voltage	110 V
Clock position	4 h
Hertz	50-60 Hz
Connection technology	Screwless - TwinCONTACT
Contact	standard
Protection type	IP44
Flange	75x75 mm
Fixing hole	60x60 mm
Weight	180 g
Certifications	VDE

Datasheets & Downloads

Panel mounted socket with TwinCONTACT 1786

Product infoPanel mounted socket with TwinCONTACT 1786 PDF, 165 KB

Dimensional drawing portraitPanel mounted socket with TwinCONTACT 1786 PNG, 34 KB

Dimensional drawing landscape formatPanel mounted socket with TwinCONTACT 1786 PNG, 35 KB

Directives

Panel mounted socket with TwinCONTACT 1786

REACh

RoHS

Appropriate accessories

Panel mounted socket with TwinCONTACT 1786

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136

Blanking flange

Part no. 41419

to close unused apertures, grey
