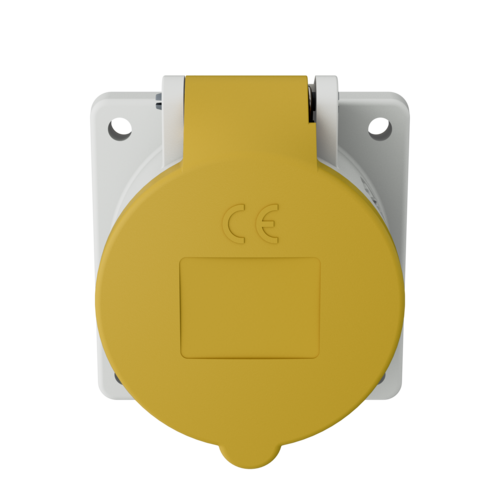

Panel mounted socket with TwinCONTACT 1795

Name: Panel mounted socket with TwinCONTACT
Brand: MENNEKES
SKU: 1795

Ampere 16 A 32 A

Poles

Voltage

Clock position

screwless spring terminals
suitable for through wiring

straight

Part no.1795
EAN4015394215011
Std. Pack. 10

Screwless - TwinCONTACT

Screwless spring terminals

Technical specifications

Panel mounted socket with TwinCONTACT 1795

Ampere	32 A
Poles	5 p
Voltage	110 V
Clock position	4 h
Hertz	50-60 Hz
Connection technology	Screwless - TwinCONTACT
Contact	standard
Protection type	IP44
Flange	75x75 mm
Fixing hole	60x60 mm
Weight	210 g
Certifications	EAC

Datasheets & Downloads

Panel mounted socket with TwinCONTACT 1795

Product infoPanel mounted socket with TwinCONTACT 1795 PDF, 165 KB

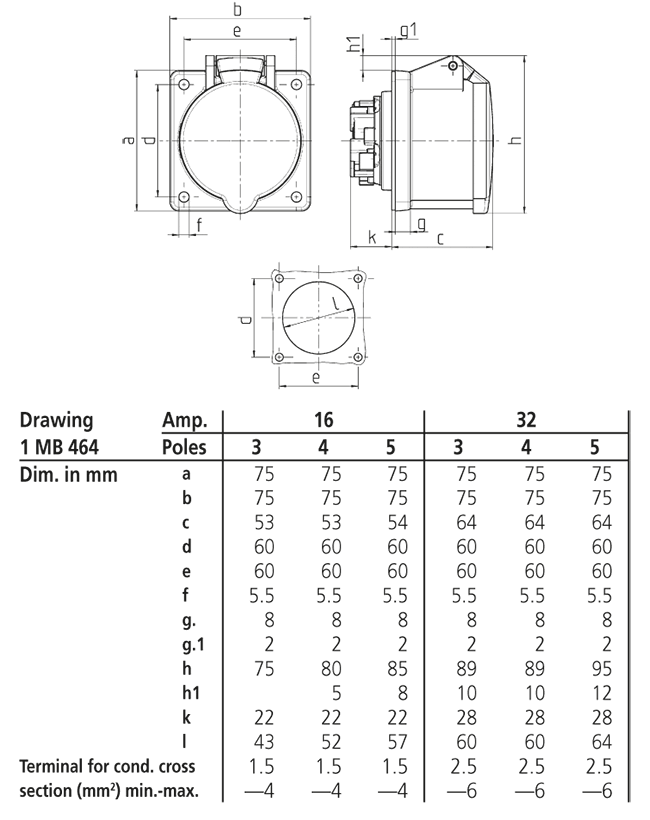

Dimensional drawing portraitPanel mounted socket with TwinCONTACT 1795 PNG, 34 KB

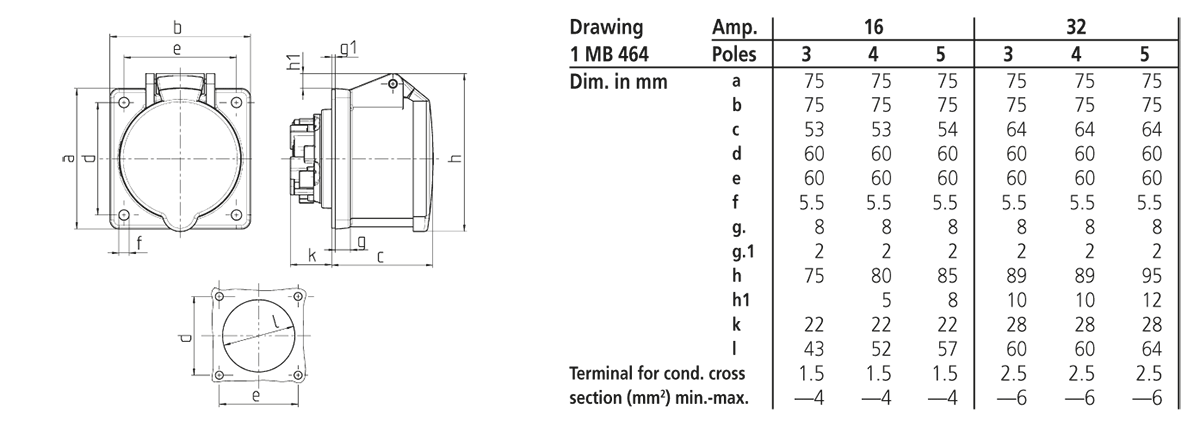

Dimensional drawing landscape formatPanel mounted socket with TwinCONTACT 1795 PNG, 35 KB

Directives

Panel mounted socket with TwinCONTACT 1795

REACh

RoHS

Appropriate accessories

Panel mounted socket with TwinCONTACT 1795

Flush mounted installation box

Part no. 40369

with accessories, suitable together with the appropriate flange for mounting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136

Flange

Part no. 41340

with a gasket for fitting a 16 A or 32 A panel mounted socket of product groups 1046, 1056, 1134 and 1136 on a flush mounted installation box order no. 40369

Blanking flange

Part no. 41419

to close unused apertures, grey
