Show all Phase inverter plugs
/
Show all Phase inverter plug ProTOP

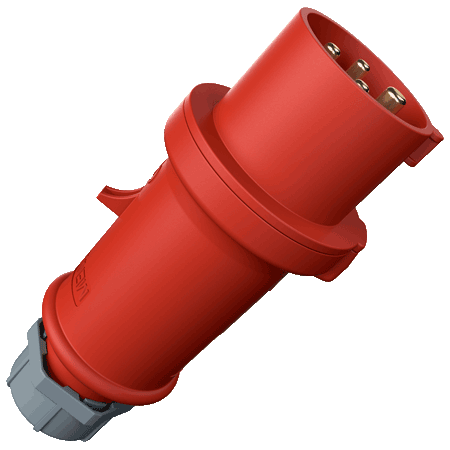

Phase inverter plug ProTOP 3319A
Ampere
16 A
32 A
Poles
5 p
Voltage
400 V
Clock position
6 h
screw terminals
cable gland and sealing
strain relief and protection against kinking
enclosure with thread lock and safety slide
Part no.
3319A
EAN
4015394201182
Std. Pack.
10
Add to shopping basket
Technical specifications
Phase inverter plug ProTOP 3319A
Ampere
16 A
Poles
5 p
Voltage
400 V
Clock position
6 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
standard
Protection type
IP44
Weight
181 g
Certifications
VDE
Datasheets & Downloads
Phase inverter plug ProTOP 3319A
Product info
Phase inverter plug ProTOP 3319A
PDF, 121 KB
Manufacturer‘s declaration
Phase inverter plug ProTOP 3319A
ZIP, 245 KB
CAD data STP
Phase inverter plug ProTOP 3319A
ZIP, 1 MB
CAD data 3D DWG
Phase inverter plug ProTOP 3319A
ZIP, 3 MB
Mounting instructions
Phase inverter plug ProTOP 3319A
PDF, 1 MB
Operation manual addendum
Phase inverter plug ProTOP 3319A
PDF, 47 KB
Dimensional drawing portrait
Phase inverter plug ProTOP 3319A
PNG, 72 KB
Dimensional drawing landscape format
Phase inverter plug ProTOP 3319A
PNG, 72 KB
Directives
Phase inverter plug ProTOP 3319A
REACh
RoHS
