Show all 7 pole
/
Show all Plug AM-TOP®

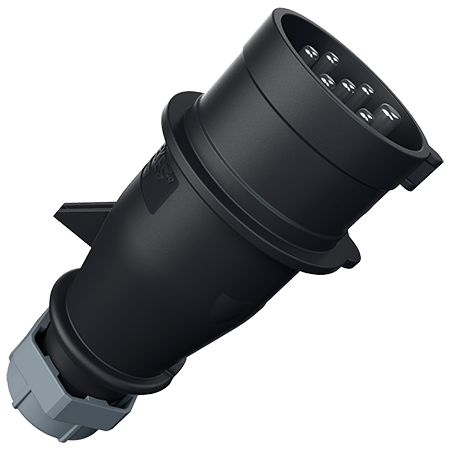

Plug AM-TOP® 1055
Ampere
16 A
32 A
Poles
7 p
Voltage
230 V
400 V
500 V
Clock position
6 h
7 h
9 h
screw terminals
highly heat resistant contact carrier
nickel plated contacts
single part body
cable gland and sealing
strain relief and protection against kinking
Part no.
1055
EAN
4015394007067
Std. Pack.
10
Add to shopping basket
Technical specifications
Plug AM-TOP® 1055
Ampere
16 A
Poles
7 p
Voltage
500 V
Clock position
7 h
Hertz
50-60 Hz
Connection technology
Screw terminals
Contact
highly heat resistant contact carrier
nickel plated contacts
Protection type
IP44
Weight
195 g
Certifications
CQC
Datasheets & Downloads
Plug AM-TOP® 1055
Product info
Plug AM-TOP® 1055
PDF, 145 KB
Manufacturer‘s declaration
Plug AM-TOP® 1055
PDF, 51 KB
Mounting instructions
Plug AM-TOP® 1055
PDF, 2 MB
Dimensional drawing portrait
Plug AM-TOP® 1055
PNG, 64 KB
Dimensional drawing landscape format
Plug AM-TOP® 1055
PNG, 64 KB
Directives
Plug AM-TOP® 1055
REACh
RoHS
