Show all 7 pole / Show all Plug AM-TOP®

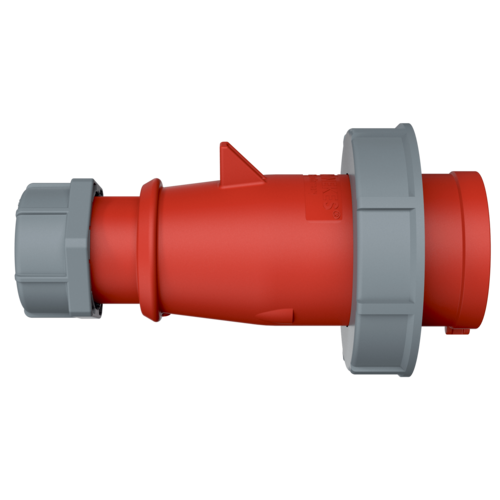

MENNEKES Plug AM-TOP® 2324
MENNEKES Plug AM-TOP® 2324 images3d

Plug AM-TOP® 2324

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.2324
  • EAN4015394014454
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP® 2324

Ampere 32 A
Poles 7 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact highly heat resistant contact carrier
nickel plated contacts
Protection type IP67
Weight 349 g
Certifications EAC

Datasheets & Downloads

Plug AM-TOP® 2324

Product infoPlug AM-TOP® 2324 PDF, 144 KB
Manufacturer‘s declarationPlug AM-TOP® 2324 PDF, 53 KB
CAD data STPPlug AM-TOP® 2324 ZIP, 1 MB
CAD data 3D DWGPlug AM-TOP® 2324 ZIP, 3 MB
Mounting instructionsPlug AM-TOP® 2324 PDF, 2 MB
Dimensional drawing portraitPlug AM-TOP® 2324 PNG, 80 KB
Dimensional drawing landscape formatPlug AM-TOP® 2324 PNG, 81 KB

Directives

Plug AM-TOP® 2324

REACh
RoHS

Appropriate accessories

Plug AM-TOP® 2324

MENNEKES Protective cover 40786

Protective cover

Part no. 40786

for watertight plugs, wall mounted and panel mounted inlets 32 A, 5 p + 7 p
