MENNEKES Plug AM-TOP® 278
MENNEKES Plug AM-TOP® 278 images3d

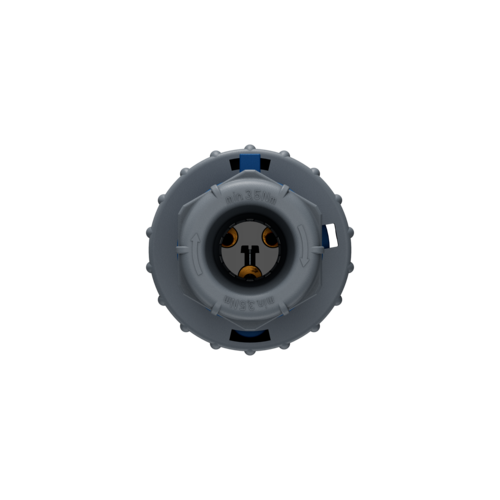

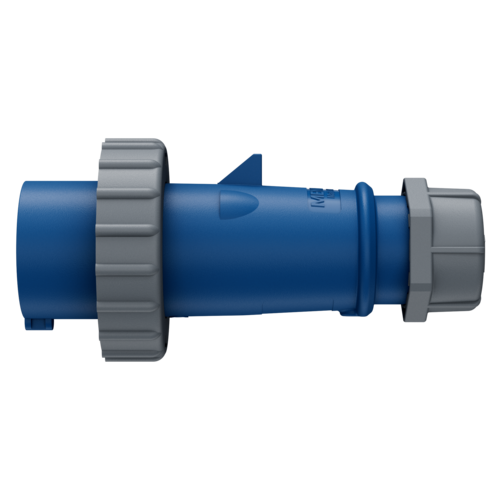

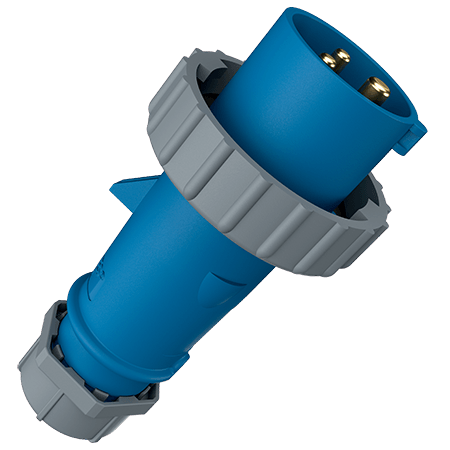

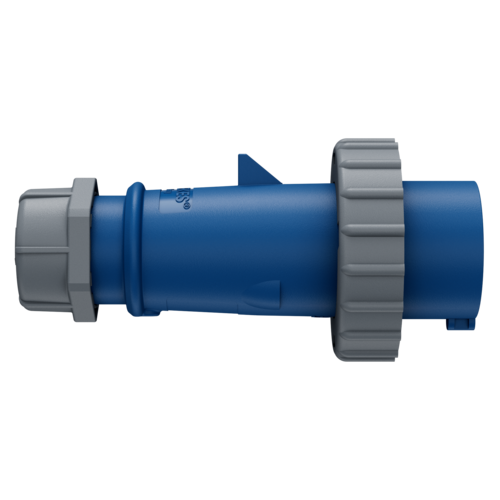

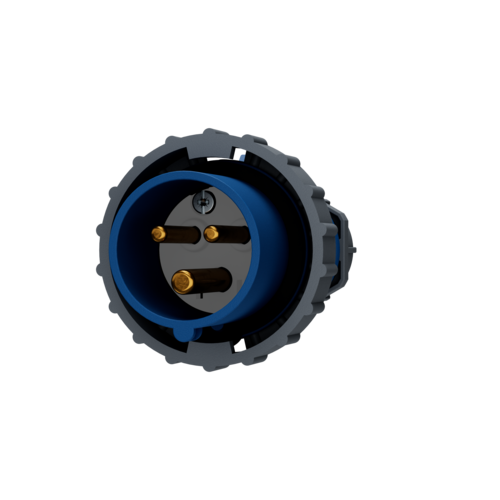

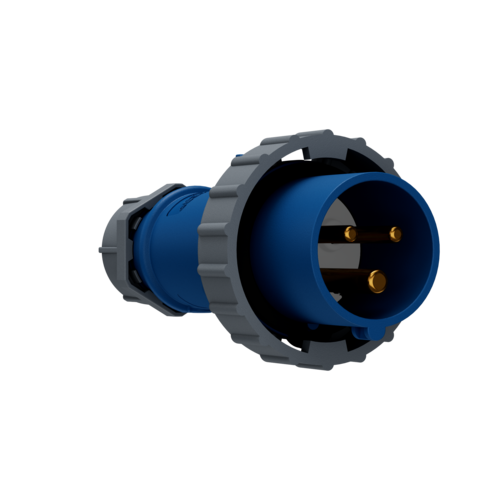

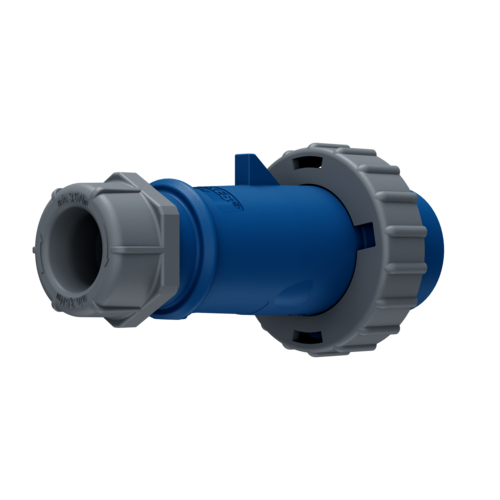

Plug AM-TOP® 278

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.278
  • EAN4015394001904
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP® 278

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 160 g
Certifications VDE
CQC

Datasheets & Downloads

Plug AM-TOP® 278

Product infoPlug AM-TOP® 278 PDF, 154 KB
Manufacturer‘s declarationPlug AM-TOP® 278 ZIP, 245 KB
CAD data STPPlug AM-TOP® 278 ZIP, 631 KB
CAD data 3D DWGPlug AM-TOP® 278 ZIP, 2 MB
Mounting instructionsPlug AM-TOP® 278 PDF, 2 MB
Dimensional drawing portraitPlug AM-TOP® 278 PNG, 90 KB
Dimensional drawing landscape formatPlug AM-TOP® 278 PNG, 91 KB

Directives

Plug AM-TOP® 278

REACh
RoHS
