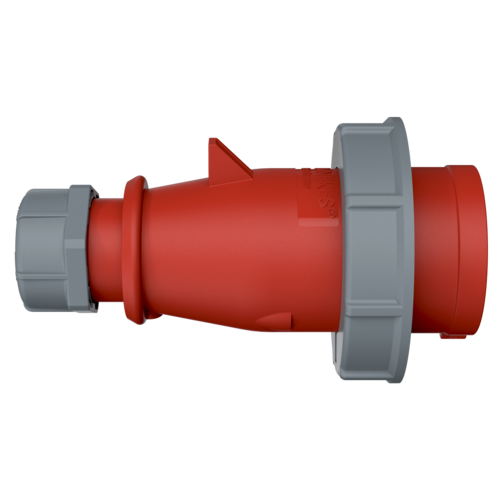

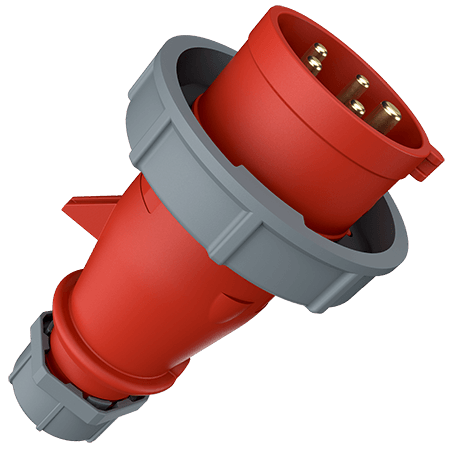

MENNEKES Plug AM-TOP® 288
MENNEKES Plug AM-TOP® 288 images3d

Plug AM-TOP® 288

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.288
  • EAN4015394002000
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP® 288

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 206 g
Certifications VDE
CQC

Datasheets & Downloads

Plug AM-TOP® 288

Product infoPlug AM-TOP® 288 PDF, 152 KB
Manufacturer‘s declarationPlug AM-TOP® 288 PDF, 53 KB
CAD data STPPlug AM-TOP® 288 ZIP, 1 MB
CAD data 3D DWGPlug AM-TOP® 288 ZIP, 3 MB
Mounting instructionsPlug AM-TOP® 288 PDF, 2 MB
Dimensional drawing portraitPlug AM-TOP® 288 PNG, 90 KB
Dimensional drawing landscape formatPlug AM-TOP® 288 PNG, 91 KB

Directives

Plug AM-TOP® 288

REACh
RoHS

Appropriate products

Plug AM-TOP® 288 with IP67

MENNEKES Connector AM-TOP® 550

Connector AM-TOP®

Part no. 550

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted socket 9342

Wall mounted socket

Part no. 9342

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Panel mounted socket 1485

Panel mounted socket

Part no. 1485

  • Protection type: IP67
  • Ampere: 16 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted socket DUOi 5612506G

Wall mounted socket DUOi

Part no. 5612506G

  • Protection type: IP67 / IP69
  • Ampere: 16 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Plug AM-TOP® 288

MENNEKES Protective cover 40785

Protective cover

Part no. 40785

for watertight plugs, wall mounted and panel mounted inlets 16 A, 5 p + 7 p
