MENNEKES Plug AM-TOP® 294
MENNEKES Plug AM-TOP® 294 images3d

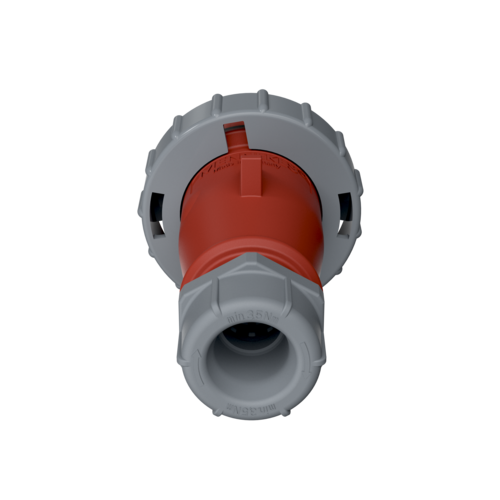

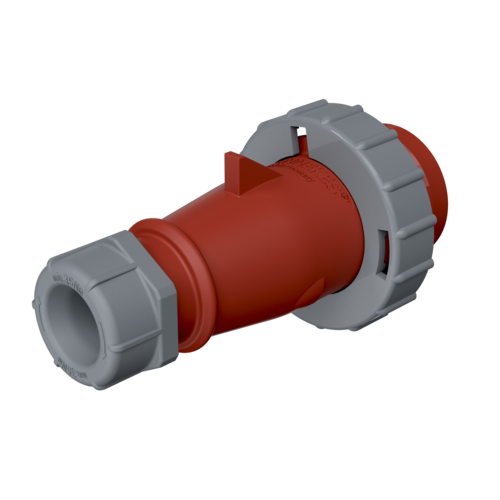

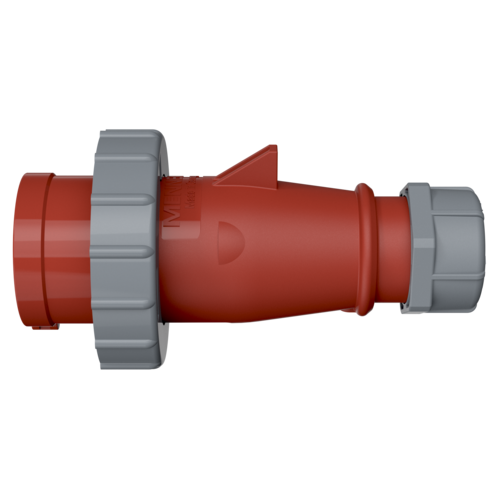

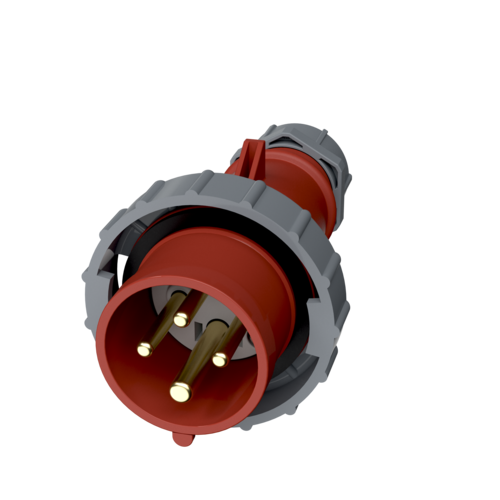

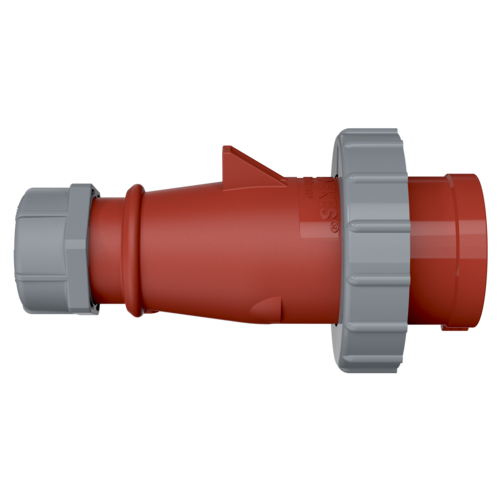

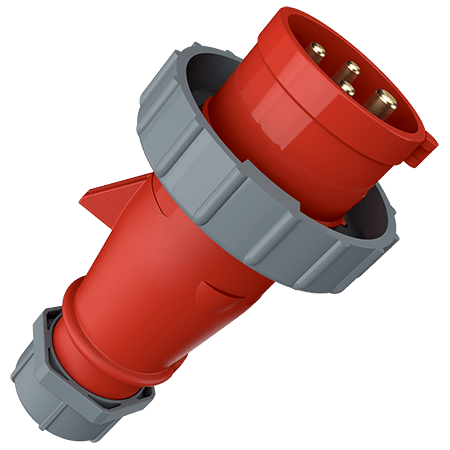

Plug AM-TOP® 294

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.294
  • EAN4015394002079
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP® 294

Ampere 32 A
Poles 4 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 313 g
Certifications VDE

Datasheets & Downloads

Plug AM-TOP® 294

Product infoPlug AM-TOP® 294 PDF, 148 KB
Manufacturer‘s declarationPlug AM-TOP® 294 PDF, 37 KB
CAD data STPPlug AM-TOP® 294 ZIP, 1 MB
CAD data 3D DWGPlug AM-TOP® 294 ZIP, 3 MB
Mounting instructionsPlug AM-TOP® 294 PDF, 2 MB
Dimensional drawing portraitPlug AM-TOP® 294 PNG, 90 KB
Dimensional drawing landscape formatPlug AM-TOP® 294 PNG, 91 KB

Directives

Plug AM-TOP® 294

REACh
RoHS

Appropriate products

Plug AM-TOP® 294 with IP67

MENNEKES Connector AM-TOP® 556

Connector AM-TOP®

Part no. 556

  • Protection type: IP67
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Panel mounted socket 1506

Panel mounted socket

Part no. 1506

  • Protection type: IP67
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted socket DUOi 5614406G

Wall mounted socket DUOi

Part no. 5614406G

  • Protection type: IP67 / IP69
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more
MENNEKES Wall mounted socket 9372

Wall mounted socket

Part no. 9372

  • Protection type: IP67
  • Ampere: 32 A
  • Poles: 4 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Plug AM-TOP® 294

MENNEKES Protective cover 40841

Protective cover

Part no. 40841

for watertight plugs, wall mounted and panel mounted inlets 32 A, 3 p + 4 p

more
