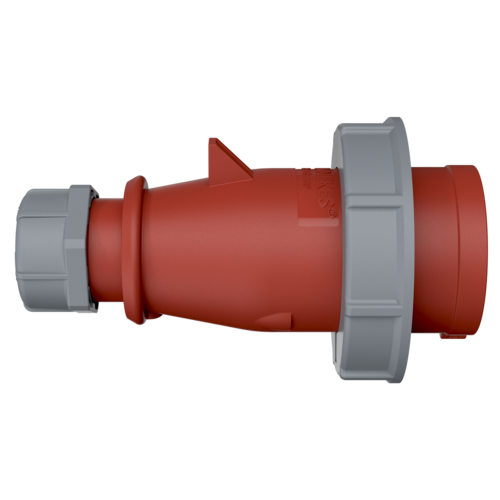

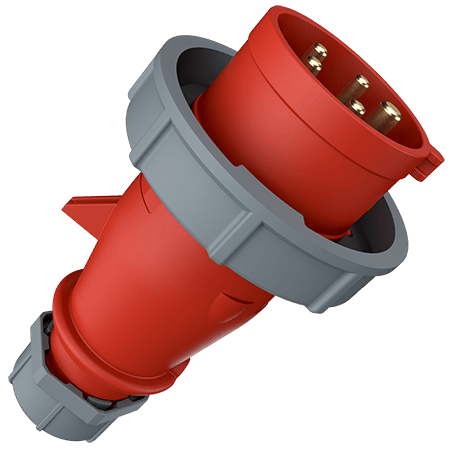

MENNEKES Plug AM-TOP® 300
MENNEKES Plug AM-TOP® 300 images3d

Plug AM-TOP® 300

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • single part body
  • cable gland and sealing
  • strain relief and protection against kinking
  • Part no.300
  • EAN4015394002130
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug AM-TOP® 300

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 329 g
Certifications VDE
CQC

Datasheets & Downloads

Plug AM-TOP® 300

Product infoPlug AM-TOP® 300 PDF, 152 KB
Manufacturer‘s declarationPlug AM-TOP® 300 ZIP, 254 KB
CAD data STPPlug AM-TOP® 300 ZIP, 1 MB
CAD data 3D DWGPlug AM-TOP® 300 ZIP, 1 MB
Mounting instructionsPlug AM-TOP® 300 PDF, 2 MB
Dimensional drawing portraitPlug AM-TOP® 300 PNG, 90 KB
Dimensional drawing landscape formatPlug AM-TOP® 300 PNG, 91 KB

Directives

Plug AM-TOP® 300

REACh
RoHS
