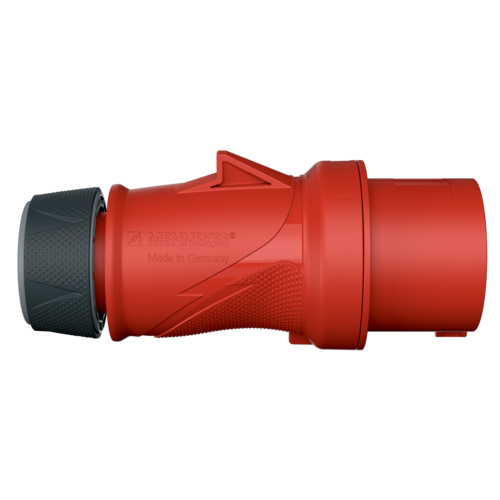

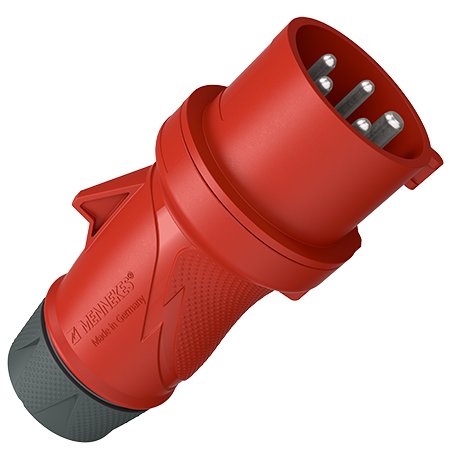

MENNEKES Plug PowerTOP Xtra R with ErgoCONTACT 13563
MENNEKES Plug PowerTOP Xtra R with ErgoCONTACT 13563 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Plug PowerTOP Xtra R with ErgoCONTACT 13563

Across all versions and applications, PowerTOP Xtra plugs excel with proven success factors: ergonomic design, easy installation, and safe and straightforward connection. The PowerTOP Xtra plug boasts IP54 protection class and is therefore impervious to water spray and dust.

Poles
Voltage
Clock position
  • screw connection technology ErgoCONTACT
  • highly heat resistant contact carrier
  • nickel plated contacts
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.13563
  • EAN4015394293835
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Technical specifications

Plug PowerTOP Xtra R with ErgoCONTACT 13563

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT®
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP54
Weight 195 g
Certifications VDE
CQC
