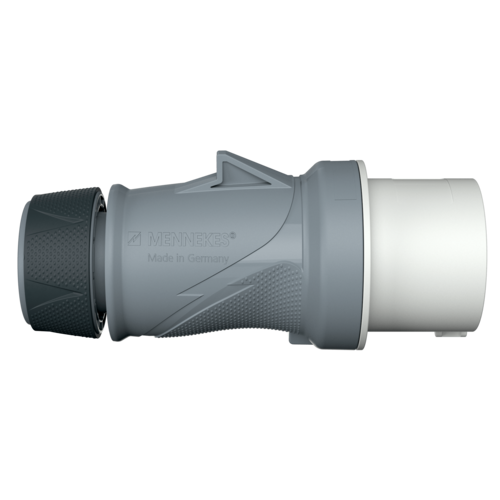

Plug PowerTOP Xtra R with ErgoCONTACT 13601
Regardless of configuration and application area – the PowerTOP Xtra plugs have compelling, tried and tested features: Ergonomic design, ease of installation, safe and straightforward connection. PowerTOP Xtra devices meet the requirements for the IP 54 protection class, meaning they are both splashproof and dustproof.
Voltage
Clock position
- screw connection technology ErgoCONTACT
- highly heat resistant contact carrier
- nickel plated contacts
- ergonomic enclosure design with nubbed grip areas
- rubberised cable gland with sealing
- strain relief and protection against kinking
- thread lock and safety slide
- area for self-adhesive labels
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Plug PowerTOP Xtra R with ErgoCONTACT 13601
| Ampere | 16 A |
|---|---|
| Poles | 5 p |
| Voltage | Isolating transformer |
| Clock position | 12 h |
| Connection technology | Screw terminals, ErgoCONTACT® |
| Contact |
nickel plated contacts highly heat resistant contact carrier |
| Protection type | IP54 |
| Weight | 195 g |
| Certifications |
VDE CQC |
