MENNEKES Plug PowerTOP Xtra R with ErgoCONTACT 13655

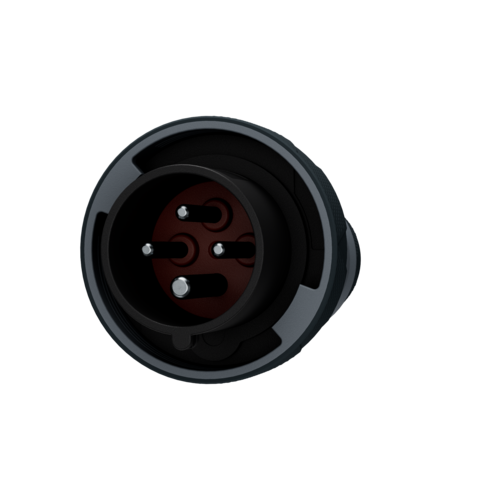

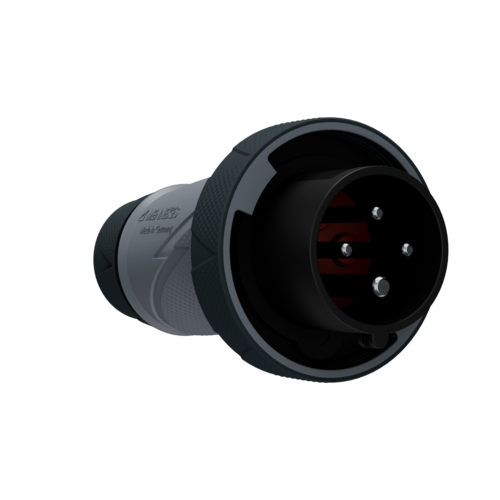

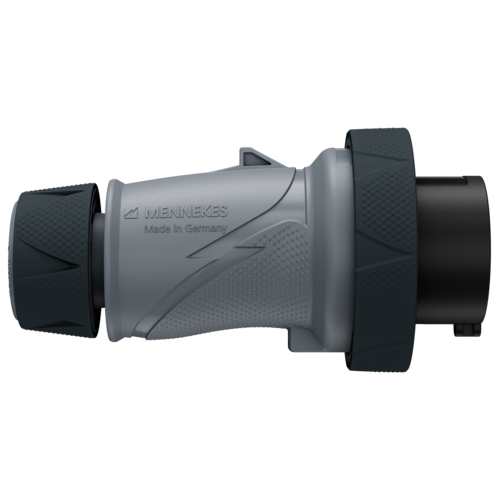

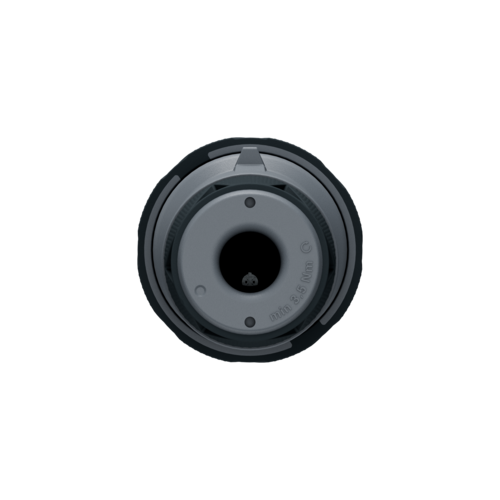

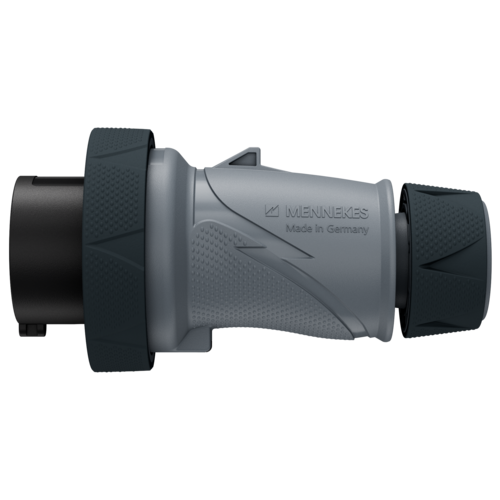

Plug PowerTOP Xtra R with ErgoCONTACT 13655

Robust technology for harsh environmental conditions - the PowerTOP Xtra plug impresses with its proven success factors: ergonomic design, ease of installation, safe and uncomplicated connection. The...Read more
Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw connection technology ErgoCONTACT
  • ergonomic enclosure design with nubbed grip zones
  • highly heat resistant contact carrier
  • nickel plated contacts
  • rubberised cable gland with sealing
  • rubberised bayonet ring
  • sealed against dust, temporary submersion and high pressure cleaning
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • Part no.13655
  • EAN4015394309048
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Read more

Technical specifications

Plug PowerTOP Xtra R with ErgoCONTACT 13655

Ampere 32 A
Poles 4 p
Voltage 500 V
Clock position 7 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT®
Contact nickel plated contacts
Protection type IP67 / IP69
Weight 390 g

Datasheets & Downloads

Plug PowerTOP Xtra R with ErgoCONTACT 13655

Product infoPlug PowerTOP Xtra R with ErgoCONTACT 13655 PDF, 1 MB
CAD data STPPlug PowerTOP Xtra R with ErgoCONTACT 13655 ZIP, 9 MB
CAD data 3D DWGPlug PowerTOP Xtra R with ErgoCONTACT 13655 ZIP, 7 MB
Mounting instructionsPlug PowerTOP Xtra R with ErgoCONTACT 13655 PDF, 2 MB
Dimensional drawing portraitPlug PowerTOP Xtra R with ErgoCONTACT 13655 PNG, 160 KB
Dimensional drawing landscape formatPlug PowerTOP Xtra R with ErgoCONTACT 13655 PNG, 346 KB
