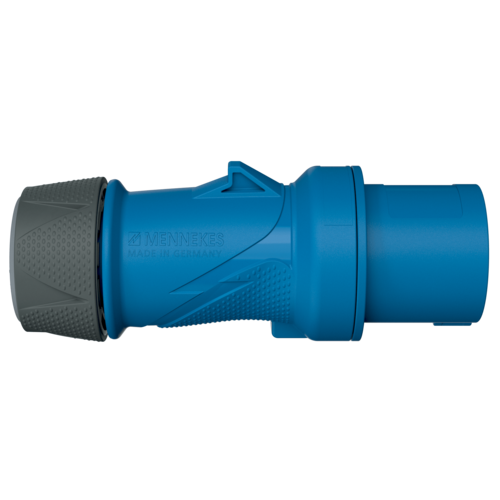

MENNEKES Plug PowerTOP Xtra S with SafeCONTACT 13521
MENNEKES Plug PowerTOP Xtra S with SafeCONTACT 13521 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Plug PowerTOP Xtra S with SafeCONTACT 13521

Across all versions and applications, PowerTOP® Xtra plugs excel with proven success factors: ergonomic design, easy installation, and safe and straightforward connection. The PowerTOP® Xtra plug boasts IP54 protection class and is therefore impervious to water spray and dust.

Poles
Voltage
Clock position
  • screwless, with insulation displacement technology SafeCONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • the PowerTOP® Xtra S plug replaces the StarTOP plug 948
  • Part no.13521
  • EAN4015394293804
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
SafeCONTACT

SafeCONTACT

Screwless, with insulation displacement technology

Technical specifications

Plug PowerTOP Xtra S with SafeCONTACT 13521

Ampere 16 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - SafeCONTACT
Contact standard
Protection type IP54
Weight 183 g
Certifications VDE
CQC

Videos

Plug PowerTOP Xtra S with SafeCONTACT 13521

Please accept marketing-cookies to watch this video.

Video varieties

Please accept marketing-cookies to watch this video.

Video mounting instructions

Directives

Plug PowerTOP Xtra S with SafeCONTACT 13521

Appropriate products

Plug PowerTOP Xtra S with SafeCONTACT 13521 with IP54

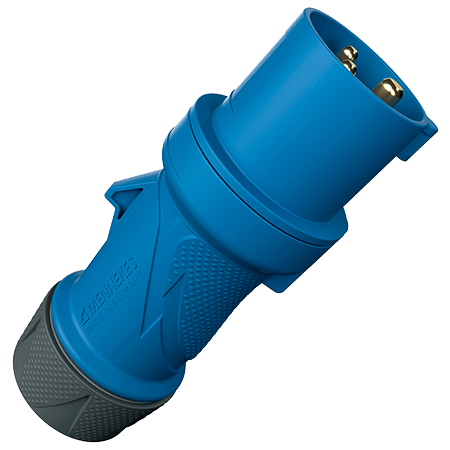

MENNEKES Connector PowerTOP Xtra S with SafeCONTACT 14521

Connector PowerTOP Xtra S with SafeCONTACT

Part no. 14521

  • Protection type: IP54
  • Ampere: 16 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screwless - SafeCONTACT
