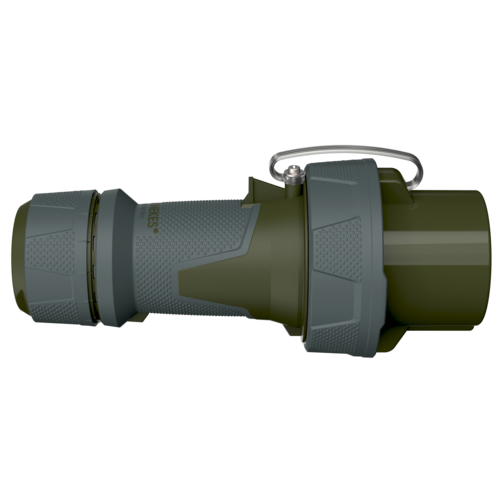

MENNEKES Plug PowerTOP Xtra TM 24870
MENNEKES Plug PowerTOP Xtra TM 24870 images3d

Plug PowerTOP Xtra TM 24870

Ampere 63 A 125 A
Poles
Voltage
Clock position
  • screw terminals
  • frame terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • cable gland and external cable grip
  • with protective cap
  • (form CP)
  • Part no.24870
  • EAN4015394247890
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Plug PowerTOP Xtra TM 24870

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact nickel plated contacts
highly heat resistant contact carrier
Protection type IP67
Weight 880 g
Certifications VDE

Datasheets & Downloads

Plug PowerTOP Xtra TM 24870

Product infoPlug PowerTOP Xtra TM 24870 PDF, 139 KB
Manufacturer‘s declarationPlug PowerTOP Xtra TM 24870 PDF, 37 KB
CAD data STPPlug PowerTOP Xtra TM 24870 ZIP, 1 MB
CAD data 3D DWGPlug PowerTOP Xtra TM 24870 ZIP, 3 MB
Mounting instructionsPlug PowerTOP Xtra TM 24870 PDF, 1 MB
Dimensional drawing portraitPlug PowerTOP Xtra TM 24870 PNG, 44 KB
Dimensional drawing landscape formatPlug PowerTOP Xtra TM 24870 PNG, 44 KB

Directives

Plug PowerTOP Xtra TM 24870

REACh
RoHS

Appropriate accessories

Plug PowerTOP Xtra TM 24870

MENNEKES Protective cover TM 24895

Protective cover TM

Part no. 24895

for watertight plugs and inlets, (form G)
