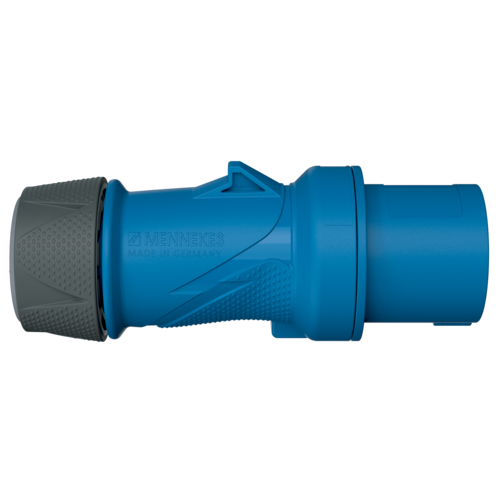

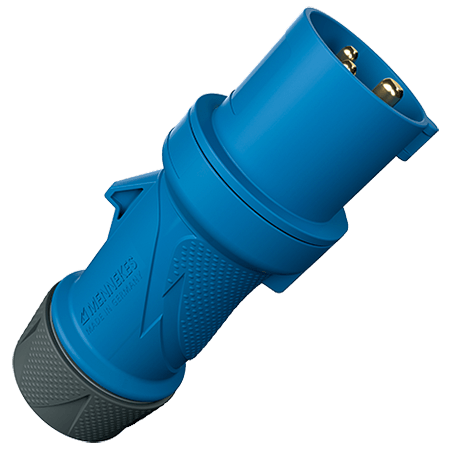

MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13513

Plug PowerTOP Xtra with ErgoCONTACT 13513

Across all versions and applications, PowerTOP Xtra plugs excel with proven success factors: ergonomic design, easy installation, and safe and straightforward connection. The PowerTOP Xtra plug boasts...Read more
Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw connection technology ErgoCONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • the PowerTOP Xtra plug replaces the ProTOP plug 160
  • Part no.13513
  • EAN4015394296720
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Read more

Technical specifications

Plug PowerTOP Xtra with ErgoCONTACT 13513

Ampere 32 A
Poles 3 p
Voltage 230 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT®
Contact standard
Protection type IP54
Weight 322 g
Certifications VDE
CQC

Datasheets & Downloads

Plug PowerTOP Xtra with ErgoCONTACT 13513

Product infoPlug PowerTOP Xtra with ErgoCONTACT 13513 PDF, 1 MB
Manufacturer‘s declarationPlug PowerTOP Xtra with ErgoCONTACT 13513 PDF, 210 KB
CAD data STPPlug PowerTOP Xtra with ErgoCONTACT 13513 ZIP, 2 MB
CAD data 3D DWGPlug PowerTOP Xtra with ErgoCONTACT 13513 ZIP, 3 MB
Mounting instructionsPlug PowerTOP Xtra with ErgoCONTACT 13513 PDF, 2 MB
Dimensional drawing portraitPlug PowerTOP Xtra with ErgoCONTACT 13513 PNG, 188 KB
Dimensional drawing landscape formatPlug PowerTOP Xtra with ErgoCONTACT 13513 PNG, 338 KB

Videos

Plug PowerTOP Xtra with ErgoCONTACT 13513

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Plug PowerTOP Xtra with ErgoCONTACT 13513

REACh
RoHS

Appropriate products

Plug PowerTOP Xtra with ErgoCONTACT 13513 with IP54

MENNEKES Panel mounted socket 1492

Panel mounted socket

Part no. 1492

  • Protection type: IP44
  • Ampere: 32 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
more
MENNEKES Connector PowerTOP Xtra with ErgoCONTACT 14513

Connector PowerTOP Xtra with ErgoCONTACT

Part no. 14513

  • Protection type: IP54
  • Ampere: 32 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals, ErgoCONTACT®
more
MENNEKES Wall mounted socket DUOi 5613306G

Wall mounted socket DUOi

Part no. 5613306G

  • Protection type: IP44
  • Ampere: 32 A
  • Poles: 3 p
  • Voltage: 230 V
  • Connection technology: Screw terminals
more

Appropriate accessories

Plug PowerTOP Xtra with ErgoCONTACT 13513

MENNEKES Plug guard 41416

Plug guard

Part no. 41416

fits all CEE plugs, panel mounted and wall mounted inlets from 16 A, 3 p up to 125 A, 5 p, not suitable for low voltage
