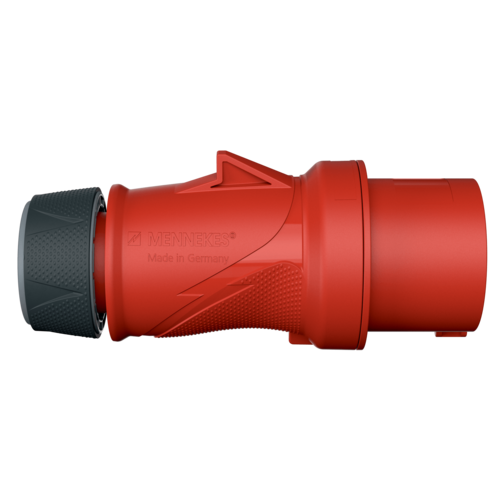

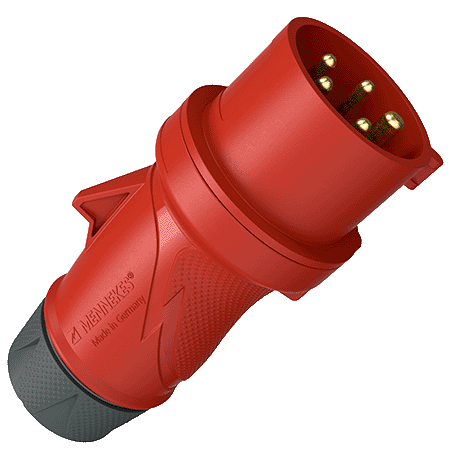

MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13520
MENNEKES Plug PowerTOP Xtra with ErgoCONTACT 13520 images3d

Please accept marketing-cookies to watch this video.

Video varieties

Plug PowerTOP Xtra with ErgoCONTACT 13520

Across all versions and applications, PowerTOP Xtra plugs excel with proven success factors: ergonomic design, easy installation, and safe and straightforward connection. The PowerTOP Xtra plug boasts IP54 protection class and is therefore impervious to water spray and dust.

Poles
Voltage
Clock position
  • screw connection technology ErgoCONTACT
  • ergonomic enclosure design with nubbed grip zones
  • rubberised cable gland with sealing
  • strain relief and protection against kinking
  • thread lock and safety slide
  • area for self-adhesive labels
  • the PowerTOP Xtra plug replaces the ProTOP plug 14A
  • Part no.13520
  • EAN4015394289326
  • Std. Pack. 10 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
ErgoCONTACT

ErgoCONTACT®

Screw connection technology

Technical specifications

Plug PowerTOP Xtra with ErgoCONTACT 13520

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals, ErgoCONTACT®
Contact standard
Protection type IP54
Weight 335 g
Certifications VDE

Videos

Plug PowerTOP Xtra with ErgoCONTACT 13520

Please accept marketing-cookies to watch this video.

Video varieties

Directives

Plug PowerTOP Xtra with ErgoCONTACT 13520

Appropriate products

Plug PowerTOP Xtra with ErgoCONTACT 13520 with IP54

MENNEKES Wall mounted socket DUOi 5613506G

Wall mounted socket DUOi

Part no. 5613506G

  • Protection type: IP44
  • Ampere: 32 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
MENNEKES Panel mounted socket 1500

Panel mounted socket

Part no. 1500

  • Protection type: IP44
  • Ampere: 32 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals
MENNEKES Connector PowerTOP Xtra with ErgoCONTACT 14520

Connector PowerTOP Xtra with ErgoCONTACT

Part no. 14520

  • Protection type: IP54
  • Ampere: 32 A
  • Poles: 5 p
  • Voltage: 400 V
  • Connection technology: Screw terminals, ErgoCONTACT®
