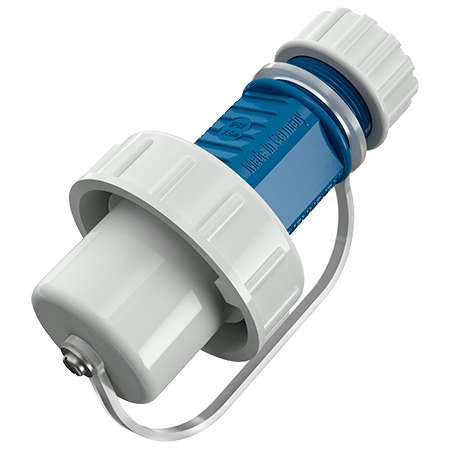

MENNEKES Plug SCHUKO® 10828

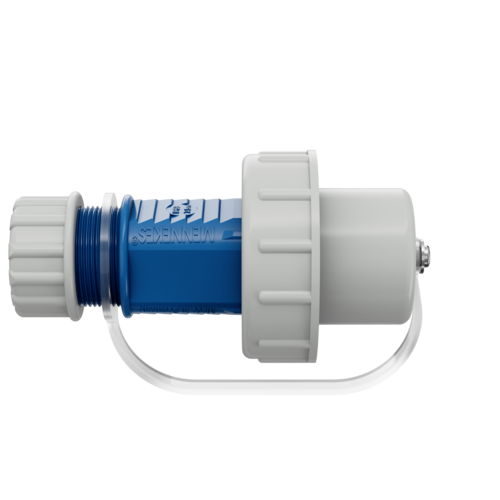

MENNEKES Plug SCHUKO® 10828 images3d

Plug SCHUKO® 10828

Ampere 16 A
Poles
Voltage
  • screw terminals
  • with combined PE-conductor acc. to german and french-belgian standard
  • with bayonet ring
  • protective cap attached by a strap
  • for cables up to 3 x 2.5 mm², up to H07RN-F
  • Part no.10828
  • EAN4015394035510
  • Std. Pack. 5

Technical specifications

Plug SCHUKO® 10828

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Screw terminals
Contact standard
Protection type IP68
Shutter No
Weight 126 g
Certifications VDE

Datasheets & Downloads

Plug SCHUKO® 10828

Product infoPlug SCHUKO® 10828 PDF, 123 KB
CAD data STPPlug SCHUKO® 10828 ZIP, 204 KB
CAD data 3D DWGPlug SCHUKO® 10828 ZIP, 184 KB
Dimensional drawing portraitPlug SCHUKO® 10828 PNG, 53 KB
Dimensional drawing landscape formatPlug SCHUKO® 10828 PNG, 54 KB

Directives

Plug SCHUKO® 10828

REACh
RoHS
