MENNEKES

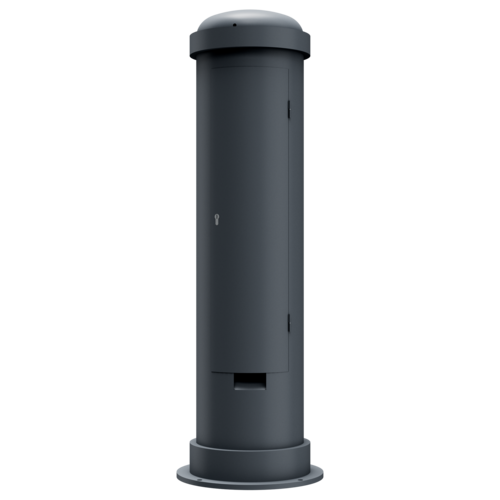

MENNEKES Power post enclosure 18502AZ
MENNEKES Power post enclosure 18502AZ images3d

Power post enclosure 18502AZ

  • from steel tube
  • wall thickness 4.5 mm
  • hot-dip galvanised
  • wet painted
  • colour: anthracite
  • iron glitter DB 703
  • hinged supply aperture
  • with safety lock
  • dimensions (H x Ø): 1400 x 325 mm (inside)
  • weight: approx. 100 kg
  • aperture at bottom: (H x W) 50 x 100 mm
  • fixing flange: Ø 450 mm
  • with 4 fixing holes 15 mm
  • for fixing to an existing fundament
  • Part no.18502AZ
  • EAN4015394195931
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Power post enclosure 18502AZ

Directives

Power post enclosure 18502AZ

Appropriate accessories

Power post enclosure 18502AZ

MENNEKES Mounting plate 15566

Mounting plate

Part no. 15566

for power post 83722 and power post enclosure 18502AZ
