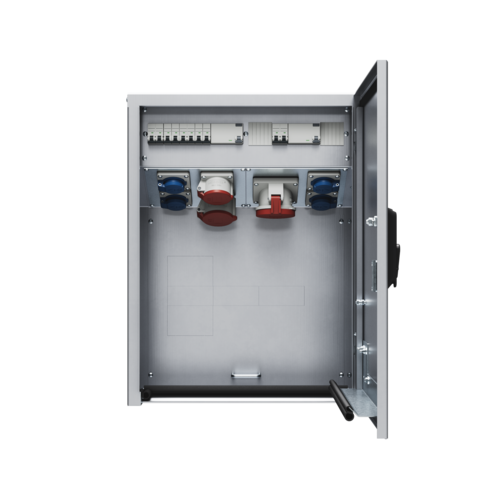

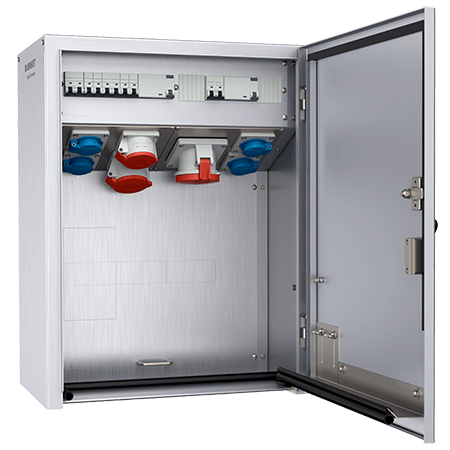

MENNEKES Stainless steel combination unit 83706
MENNEKES Stainless steel combination unit 83706 images3d

Stainless steel combination unit 83706

CEE 63 A, 5 p, 400 V
CEE 32 A, 5 p, 400 V
CEE 16 A, 5 p, 400 V
SCHUKO® 16 A, 230 V
  • stainless steel enclosure (material 1.4301)
  • surface with a flat finish (K240), material 1.4571 on request
  • protection type IP 44 with closed door
  • Part no.83706
  • EAN4015394210719
  • Std. Pack. 1
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Stainless steel combination unit 83706

CEE 63 A, 5 p, 400 V 1
CEE 32 A, 5 p, 400 V 1
CEE 16 A, 5 p, 400 V 1
SCHUKO® 16 A, 230 V 4
Fusing
  • 2 RCD´s 63 A, 4 p, 0.03 A
  • 2 MCB´s 63 A, 3 p, C
  • 1 MCB 32 A, 3 p, C
  • 1 MCB 16 A, 3 p, C
  • 4 MCB´s 16 A, 1 p, B
Pre-fuse max. 125 A
InA 79 A
RDF 0.55
Connection/feeder cable
  • for 2 cables up to 5 x 50 mm²
Protection type IP44
Enclosure material Metal
Weight 50000 g
Height 700 mm
Width 530 mm
Depth 350 mm
Certifications EAC
Storage receptacle combination D

Directives

Stainless steel combination unit 83706
